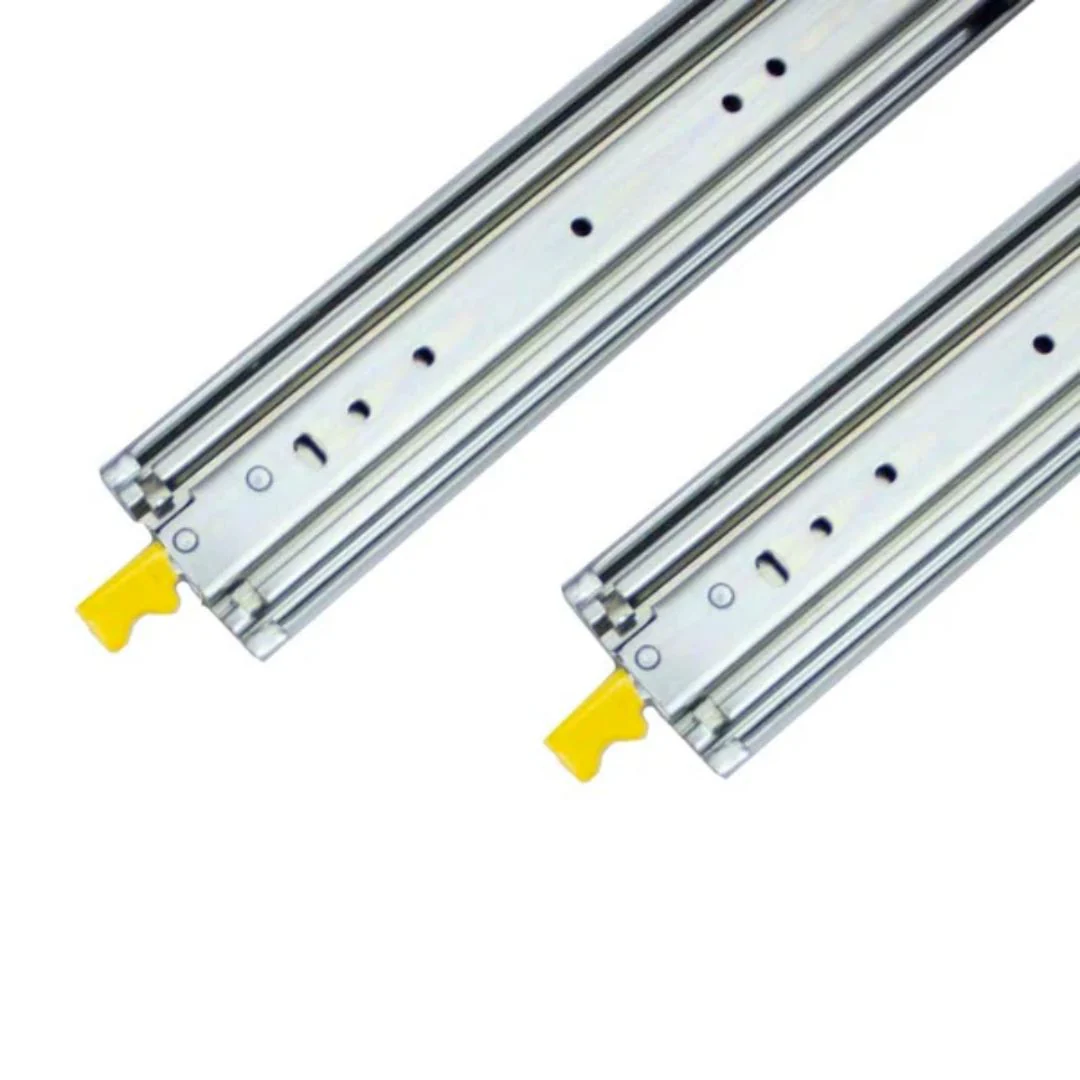

Heavy Duty Locking Drawer Runner 660mm - 250kg - Full Extension

Our IntAfit locking heavy-duty ball bearing runner offers double extension, the runner has a latch for locking the slide in the open and closed position, please allow an extra 32mm for the latch length. These runners are also known as locking container slides and are produced by cold-rolled steel. The drawer runner is designed to be fitted between a unit side and a drawer side. For alternative fixing options please see the "Fitting Brackets" section of the page

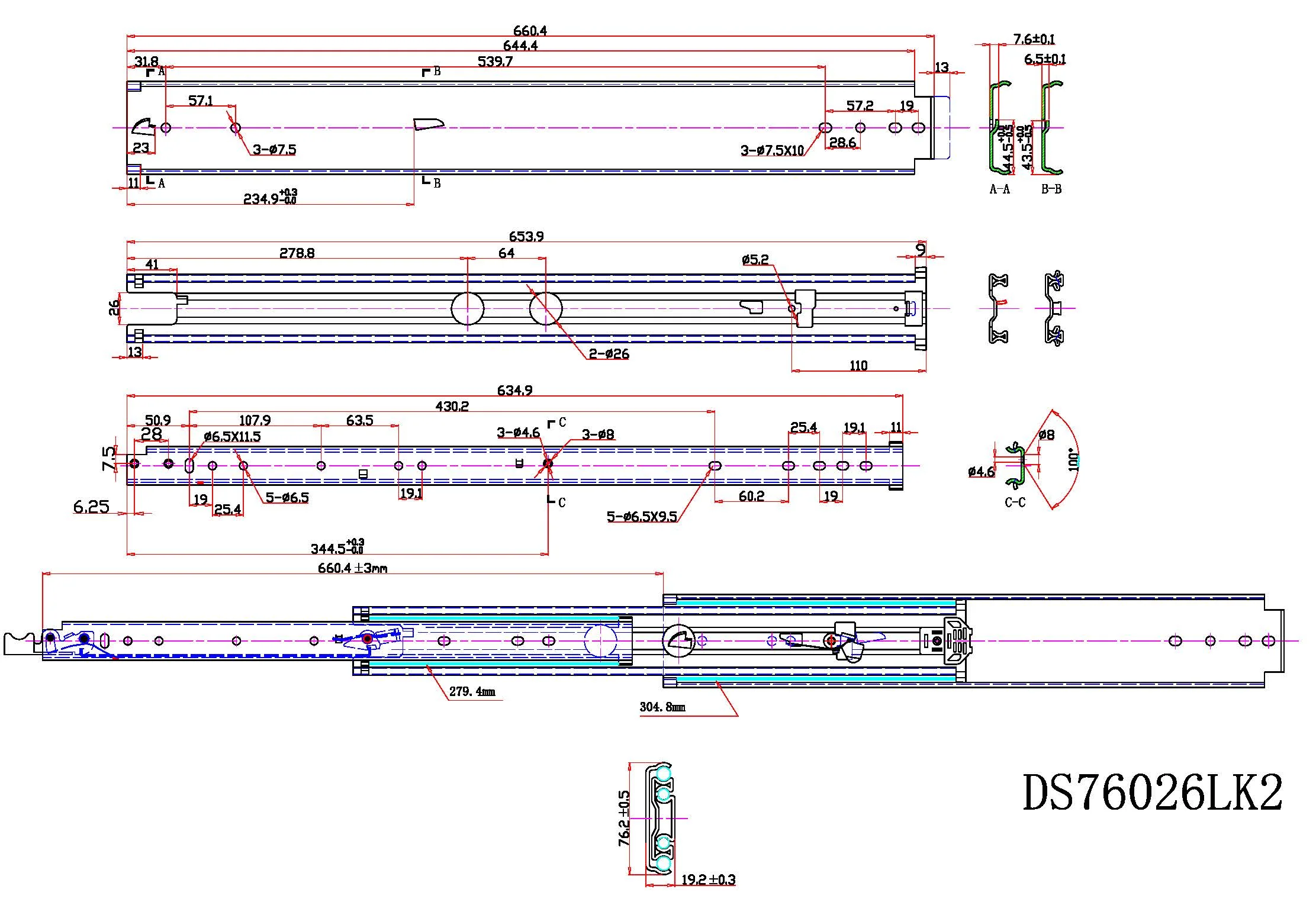

Specifications



• Quick Release: No (due to load rating)
• Closed Length: 660mm (26")
• Open Length: 1320mm (52")
• Profile Height: 76mm
• Profile Width: 19.1mm
• Locking: When 100% Open/Closed
• Load Rating: 250kg (based on a 457mm runner)
• Finish: Zinc Plated
• Fixing Method: Screw or Rivet
• Handed: Yes (L & R)
• Locking Lever: Both Sides

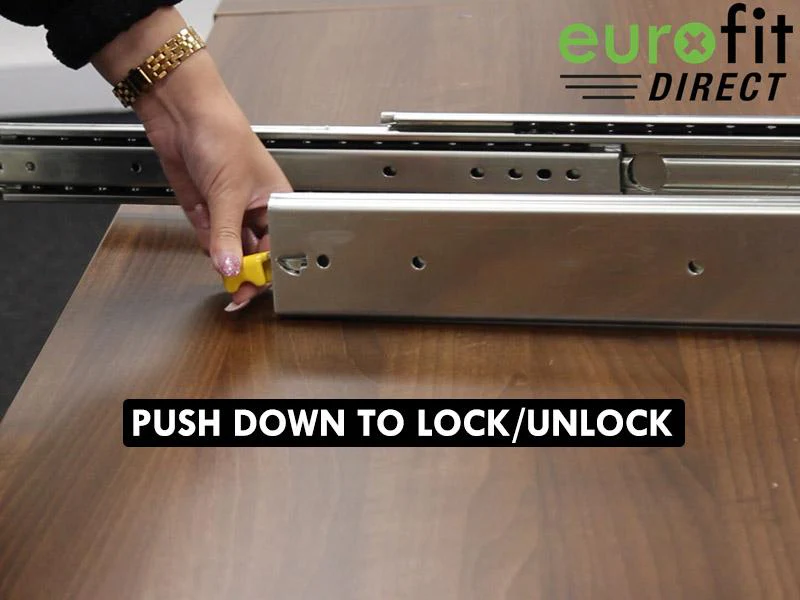

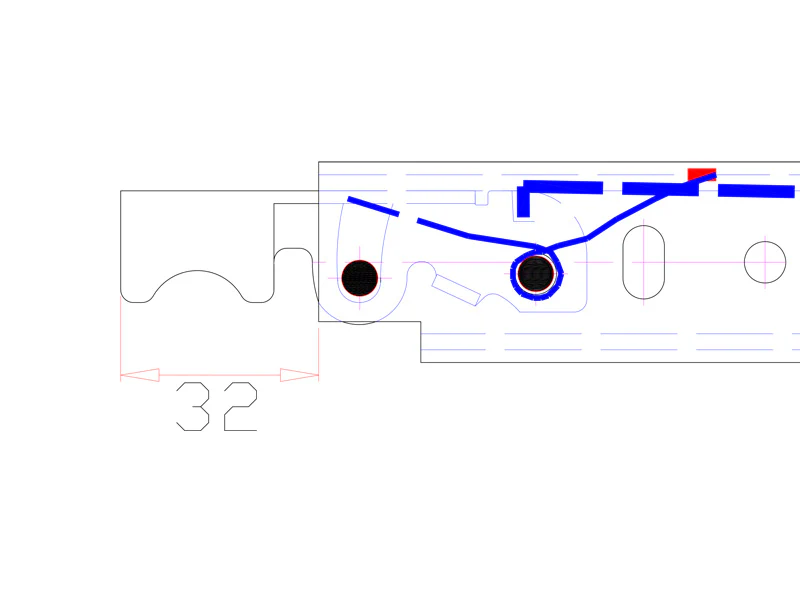

Please note: The runner has a latch for locking the slide in the open and closed position, please allow an extra 32mm for the latch length.



Load Information

Please note that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.

Push to open and soft-close devices are not recommended to be used due to the potential load.





Fitting Brackets

For alternative fixing options see the following mounting bracket sets...

Side Mounting Bracket Set For DS76026LK2
Bottom Mounting Bracket Set For DS76026LK2
Base Mounting Bracket Set For DS76026LK2

Recommended Screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

6.3mm x 13mm Pozi Countersunk (Pack Of 50)

M6 x 16mm Button Head Socket Screw
