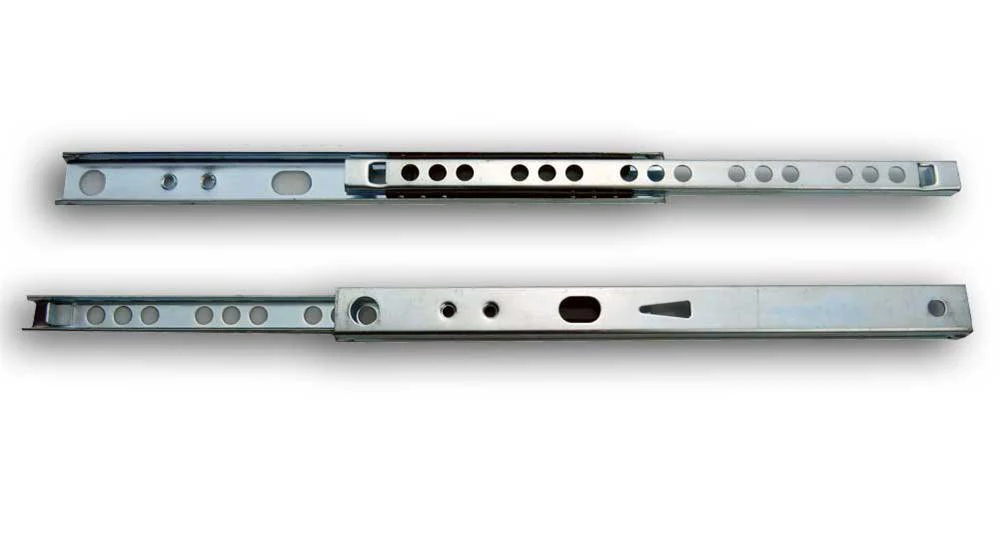

Light Duty Drawer Runner 182mm - 10kg - Full Extension

Our two way extension mini Slides are perfect for smaller applications and are mainly fitted in flat pack furniture such as cabinets, lockers and drawer systems. These runners can be used for wooden or steel drawers 186-284mm deep and can open from either ends of the runner. The 17mm profile is fitted into a 17 x 6mm rebate in the side of the drawer.

These slides are easy to install and require a M4 x 9mm bolt for installation to the drawer box as well as our recommended screws below for installation to the side panels.







Specifications



• Quick Release: No
• Closed length: 182mm
• Open length: 286mm
• Profile Height: 17mm
• Profile Width: 9.8mm
• Load Rating: 10kg
• Range Sizes: 182 - 344mm
• Finish: Zinc Plated
• Fixing Method: Bolt & Screw
