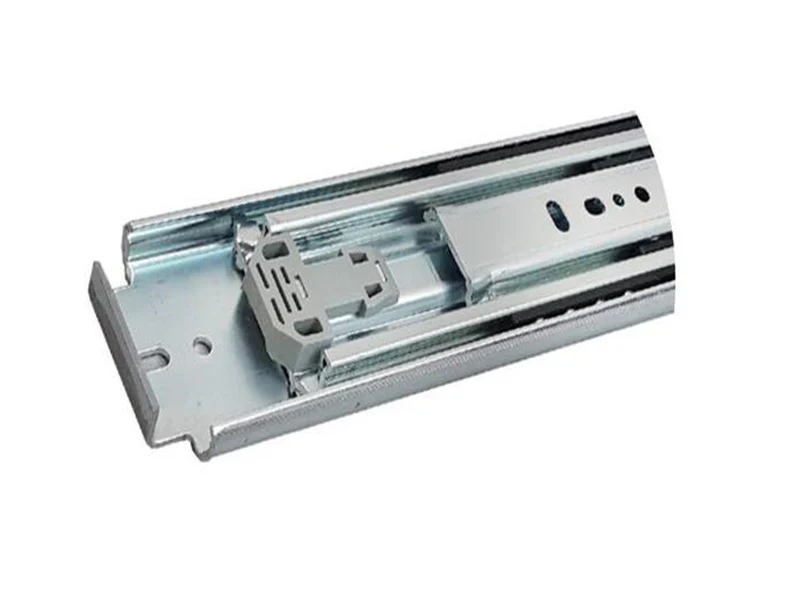

Ball Bearing Drawer Runner 1524mm - 150kg - Full Extension

IntAfit 1524mm (60") slide is a very competitive double extension cold rolled slide also known as a container slides with a load rating of 150kg based on 30,000 cycles. The drawer runner is designed to be fitted between a unit side and a drawer side.







Specifications



• Quick Release: No (due to load rating)
• Closed Length: 1524mm (60")
• Open Length: 3048mm (120")
• Profile Height: 76mm
• Profile Width: 19.1mm
• Load Rating: 150kg (when fully extended)
• Range Sizes: 250 - 1524mm (10" - 60")
• Finish: Zinc Plated

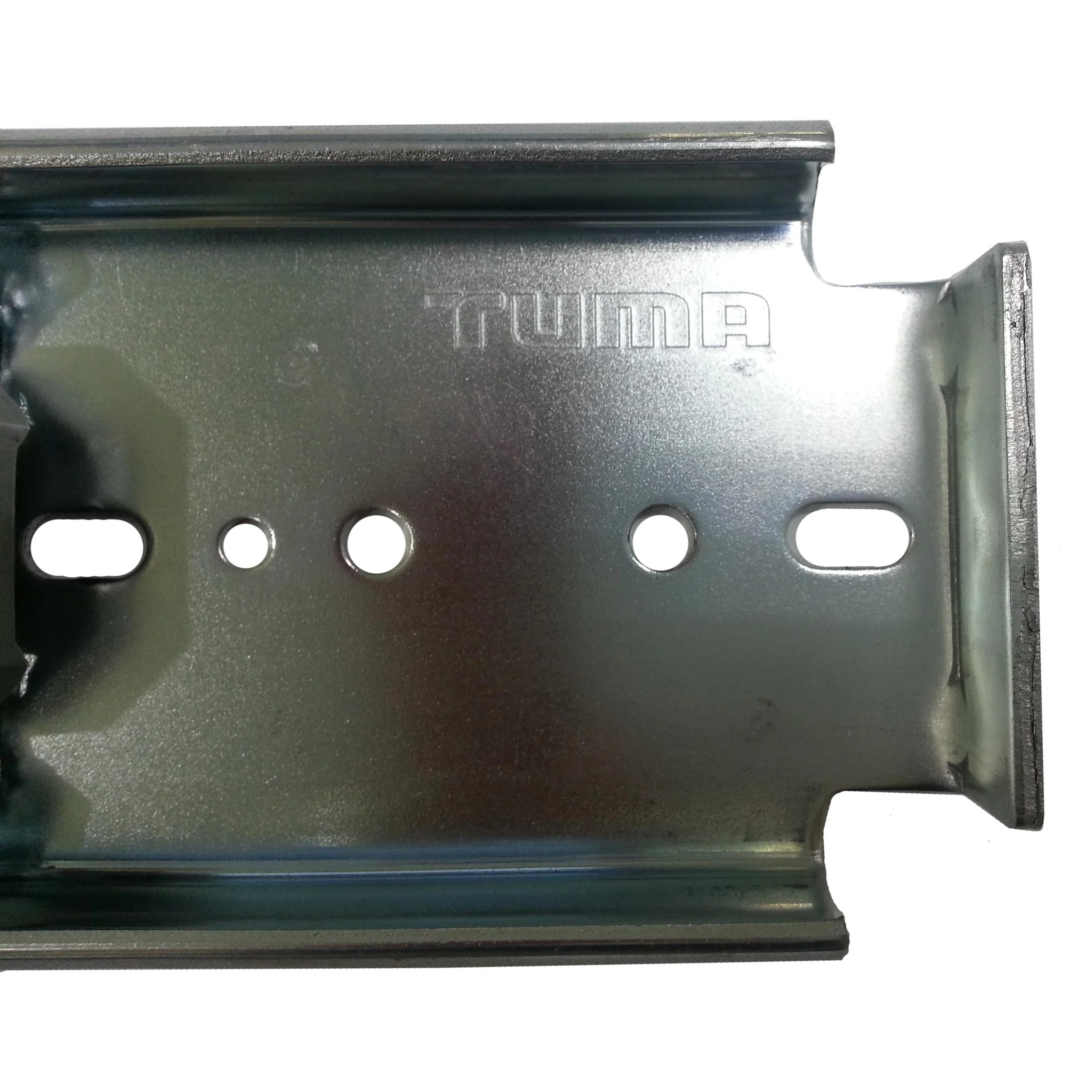

• Fixing Method: Screw or Rivet

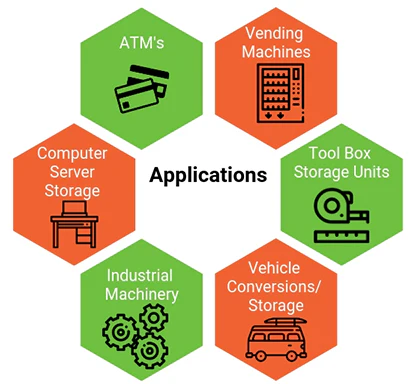

Applications

• ATM's
• Vending machines
• Tool box storage units
• Vehicle conversions
• Vehicle stowage
• Motorhomes
• Under stairs storage
• Computer server storage
• Industrial machinery



Fitting Information

This type of slide is designed to be used on its side, if used on its flat (as shown in the below diagram) then the load rating must be reduced by 80%





Recommended Screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

6.3mm x 13mm Pozi Countersunk (Pack Of 50)

M6 x 16mm Button Head Socket Screw and M6 Nylon Insert Nut

M6 x 16mm Button Head Socket Screw



Locking Handles

Front Mounted Locking Handle

Rear Mounted Locking Handle
