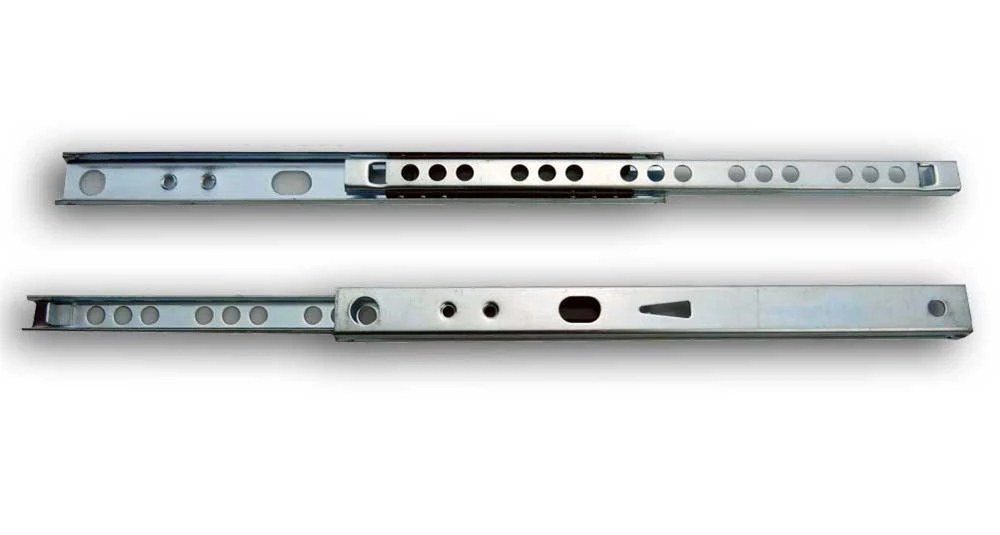

Light Duty Drawer Runner 246mm - 10kg - Full Extension

Our two way extension mini Slides are perfect for smaller applications and are mainly fitted in flat pack furniture such as cabinets, lockers and drawer systems. These runners can be used for wooden or steel drawers 250-450mm deep. The 17mm profile is fitted into a 17 x 6mm rebate in the side of the drawer. These slides are easy to install and require a M4 x 9mm bolt for installation to the drawer box as well as our recommended screws below for installation to the side panels.





 Specifications



• Quick Release: No
• Closed length: 246mm
• Open length: 417mm
• Profile Height: 17mm
• Profile Width: 9.8mm
• Load Rating: 10kg
• Range Sizes: 182 - 344mm
• Finish: Zinc Plated
• Fixing Method: Bolt & Screw



Alternative Products

Ball Bearing 10kg Two Way Mini Slide Length 182mm

Ball Bearing 10kg Two Way Mini Slide Length 214mm

Ball Bearing 10kg Two Way Mini Slide Length 278mm

Ball Bearing 10kg Two Way Mini Slide Length 312mm

Ball Bearing 10kg Two Way Mini Slide Length 344mm



Recommended Screws

Mini Slide Bolt Combi-Clot - M4 x 9mm (Pack of 20)

Torq-Fix Pozi Countersunk Screw 3.5 x 16mm (6 x 5/8") Zinc
