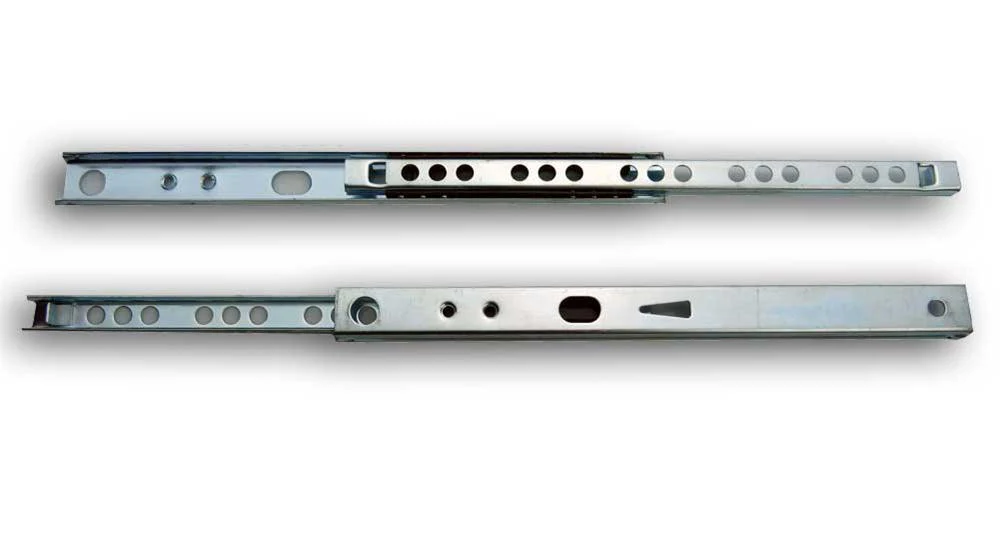

Light Duty Drawer Runner 344mm - 10kg - Full Extension

Our 344mm two way extension mini Slides are designed to fit into a groove on the side of the drawer and are suitable for drawers 346-590mm deep and are ideal for KD and flat pack furniture.

These slides are easy to install and require a M4 x 9mm bolt for installation to the drawer box as well as our recommended screws below for installation to the side panels.



*Please note: Screws & Fittings are sold separately.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.







Specifications



• Quick Release: No
• Closed length: 344mm
• Open length: 576mm
• Profile Height: 17mm
• Profile Width: 9.8mm
• Load Rating: 10kg
• Range Sizes: 182 - 344mm
• Finish: Zinc Plated
• Fixing Method: Bolt & Screws not included





Recommended Screws

Mini Slide Bolt Combi-Clot - M4 x 9mm (Pack of 20)

Torq-Fix Pozi Countersunk Screw 3.5 x 16mm (6 x 5/8") Zinc
