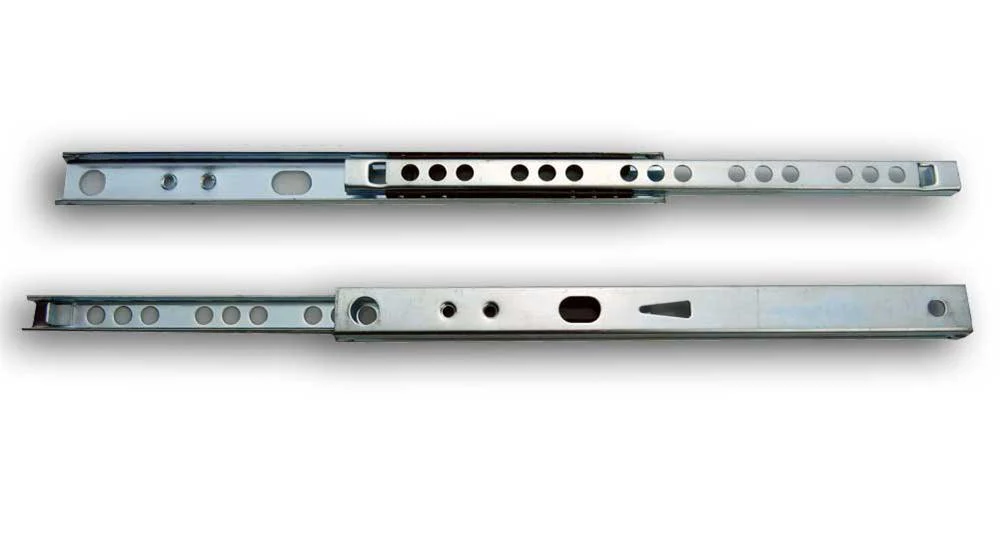

Light Duty Drawer Runner 278mm - 10kg - Full Extension

These 278mm two way extension mini Slides are suitable for KD and flat pack furniture. They are designed to fit into a 17mm groove on the side of the drawer. The recommended drawer depth for these slides is 282-478mm. These slides are easy to install and require a M4 x 9mm bolt for installation to the drawer box as well as our recommended screws below for installation to the side panels.







Specifications



• Quick Release: No
• Closed length: 278mm
• Open length: 482mm
• Profile Height: 17mm
• Profile Width: 9.8mm
• Load Rating: 10kg
• Range Sizes: 182 - 344mm
• Finish: Zinc Plated
• Fixing Method: Bolt & Screw
