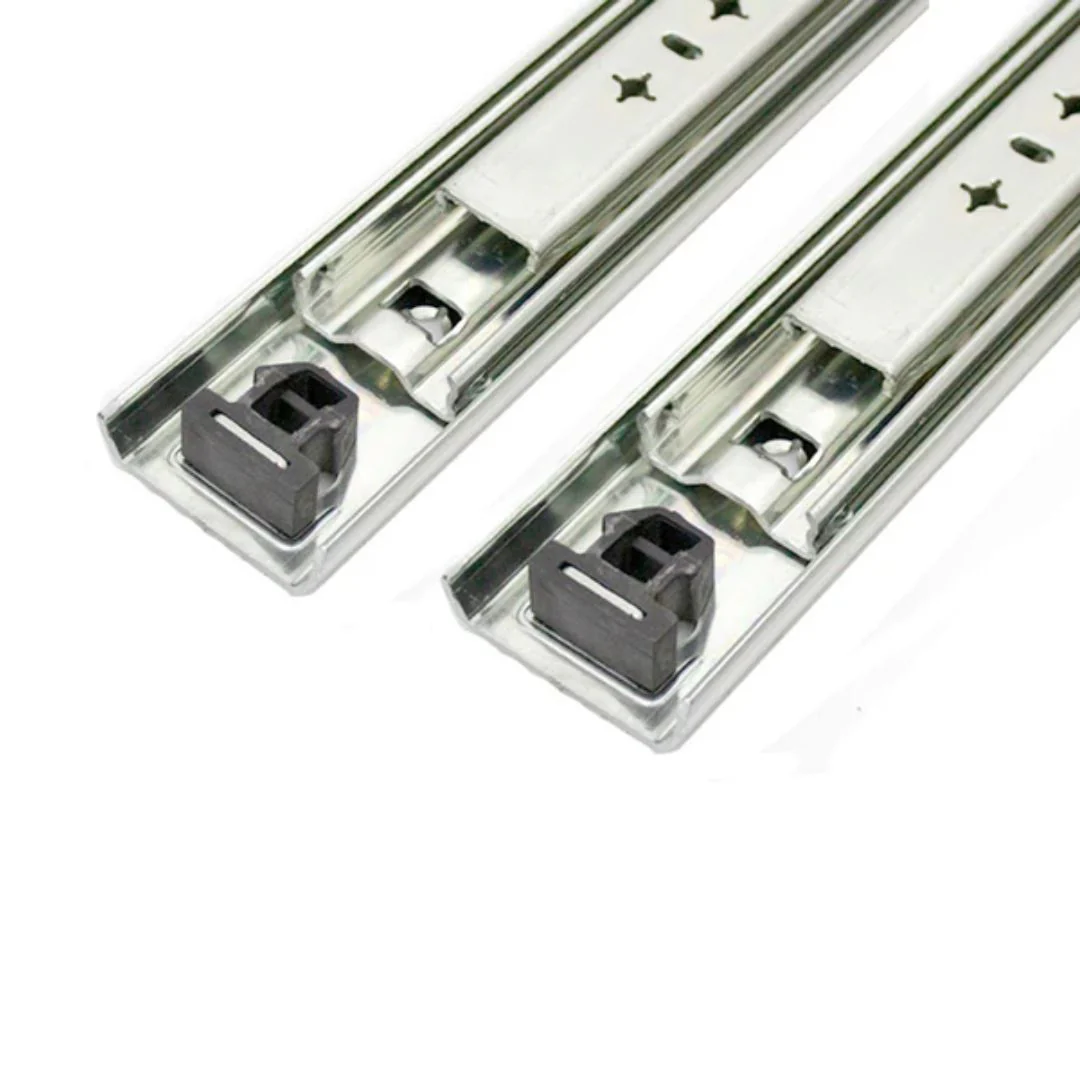

Heavy Duty Drawer Runner 1200mm - 70kg - Full Extension

Our IntAfit heavy-duty ball bearing runner offers double extension with a load rating of 70kg when fully extended, these runners are produced by cold-rolled steel. The drawer runner is designed to be fitted between a unit side and a drawer side.

For alternative fixing options please see the "Fitting Brackets" section of the page.

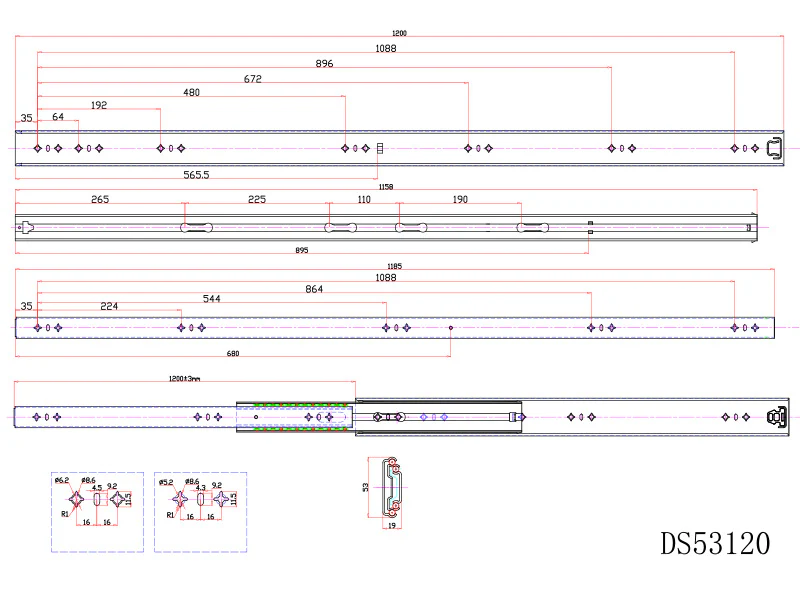

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page



Specifications



• Finish: Zinc Plated
• Quick Release: Yes - Lever Disconnect
• Closed Length: 1200mm
• Open Length: 2400mm

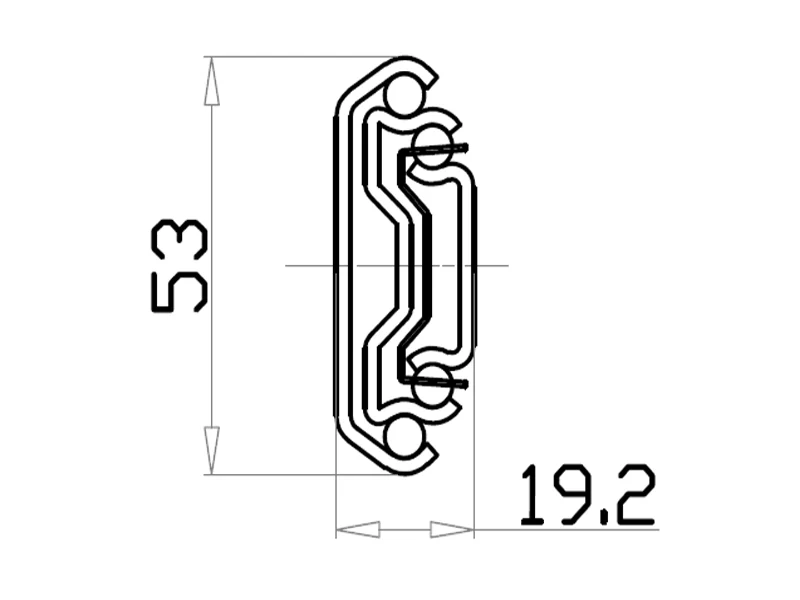

• Profile Height: 53mm
• Profile Width: 19.2mm
• Load Rating: 70kg (when fully extended)
• Range Sizes: 350 - 1200mm
• Fixing Method: Screw or Rivet



Applications

• Vehicle and campervan conversions
• Vehicle Storage
• Loft Eaves Storage
• Under stairs storage
• ATM's
• Vending machines
• Toolbox storage units
• Computer server storage
• Industrial machinery



Fitting Brackets

For alternative fixing options see the following mounting bracket sets...

Side Mounting Bracket Set For DS53120
Bottom Mounting Bracket Set For DS53120
Base Mounting Bracket Set For DS53120



Recommended Screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

6.3mm x 13mm Pozi Countersunk (Pack Of 50)

Locking Handles

Front Mounted Locking Handle

Rear Mounted Locking Handle



Additional Products

Push to Open Touch Locking Latch (rubber stopper on runner has to be removed for these to work)
