Heavy Duty Drawer Runner 711mm - 250kg - Full Extension

Our IntAfit heavy-duty ball bearing runner offers double extension, these runners are also known as container slides and produced by cold-rolled steel. The drawer runner is designed to be fitted between a unit side and a drawer side.

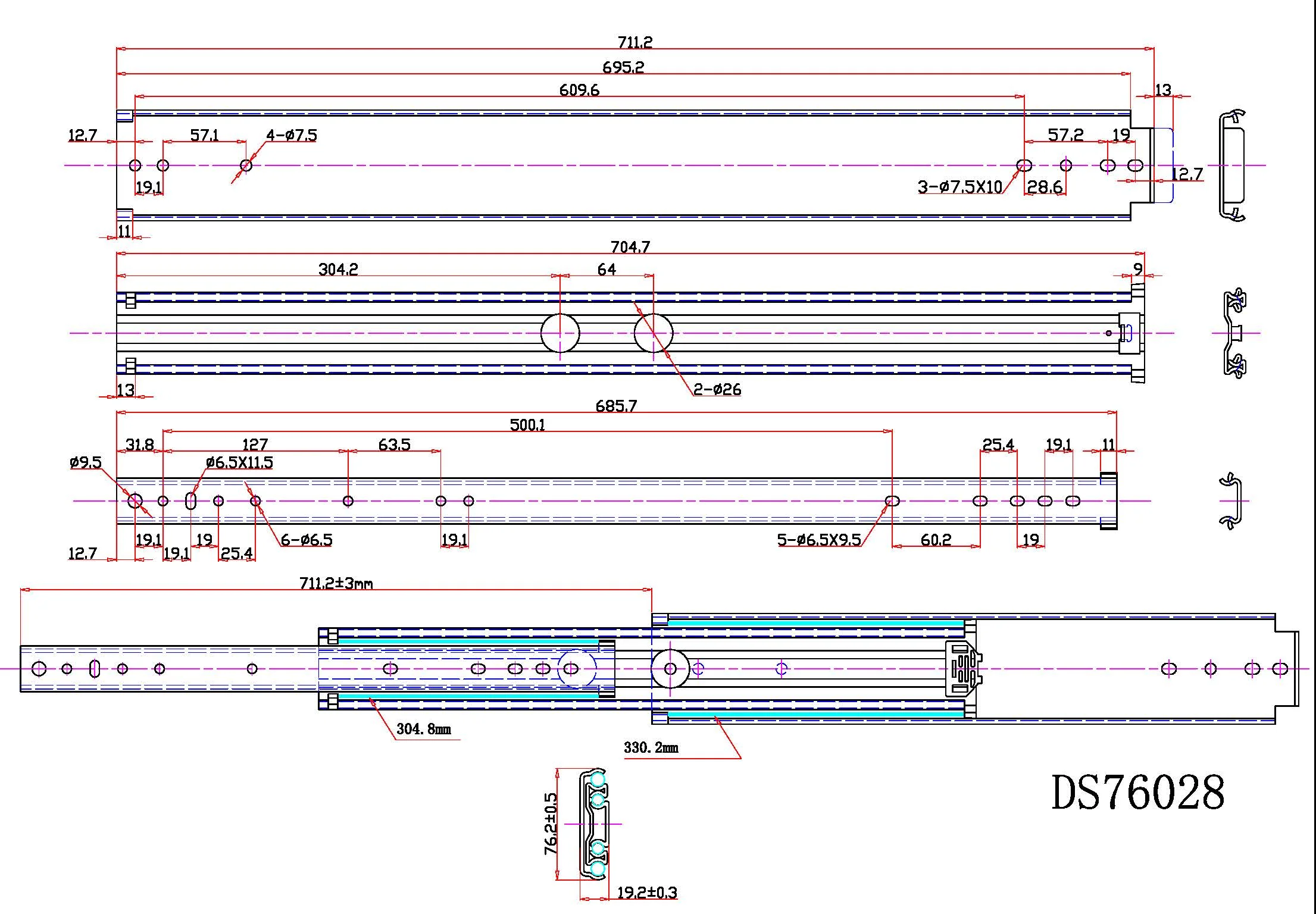

Specifications



• Finish: Zinc Plated
• Quick Release: No (due to load rating)
• Closed length:  711mm (28")
• Open length:  1422mm (56")
• Profile Height: 76mm
• Profile Width: 19.2mm
• Load Rating: 250kg (based on a 457mm runner)
• Fixing Method: Screw or Rivet



Applications

• Vehicle and campervan conversions
• Vehicle Storage
• Loft Eaves Storage
• Under stairs storage
• ATM's
• Vending machines
• Toolbox storage units
• Computer server storage
• Industrial machinery



*Please note: that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.

Push to open and soft close devices are not recommended to be used together with these runners due to the potential load.





Fitting Brackets

For alternative fixing options see the following mounting bracket sets...

Side Mounting Bracket Set For DS76028
Bottom Mounting Bracket Set For DS76028
Base Mounting Bracket Set For DS76028



Recommended Screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

6.3mm x 13mm Pozi Countersunk (Pack Of 50)

M6 x 16mm Button Head Socket Screw and M6 Nylon Insert Nut



Additional Products

Push to Open Touch Locking Latch (rubber stopper on runner has to be removed for these to work)
