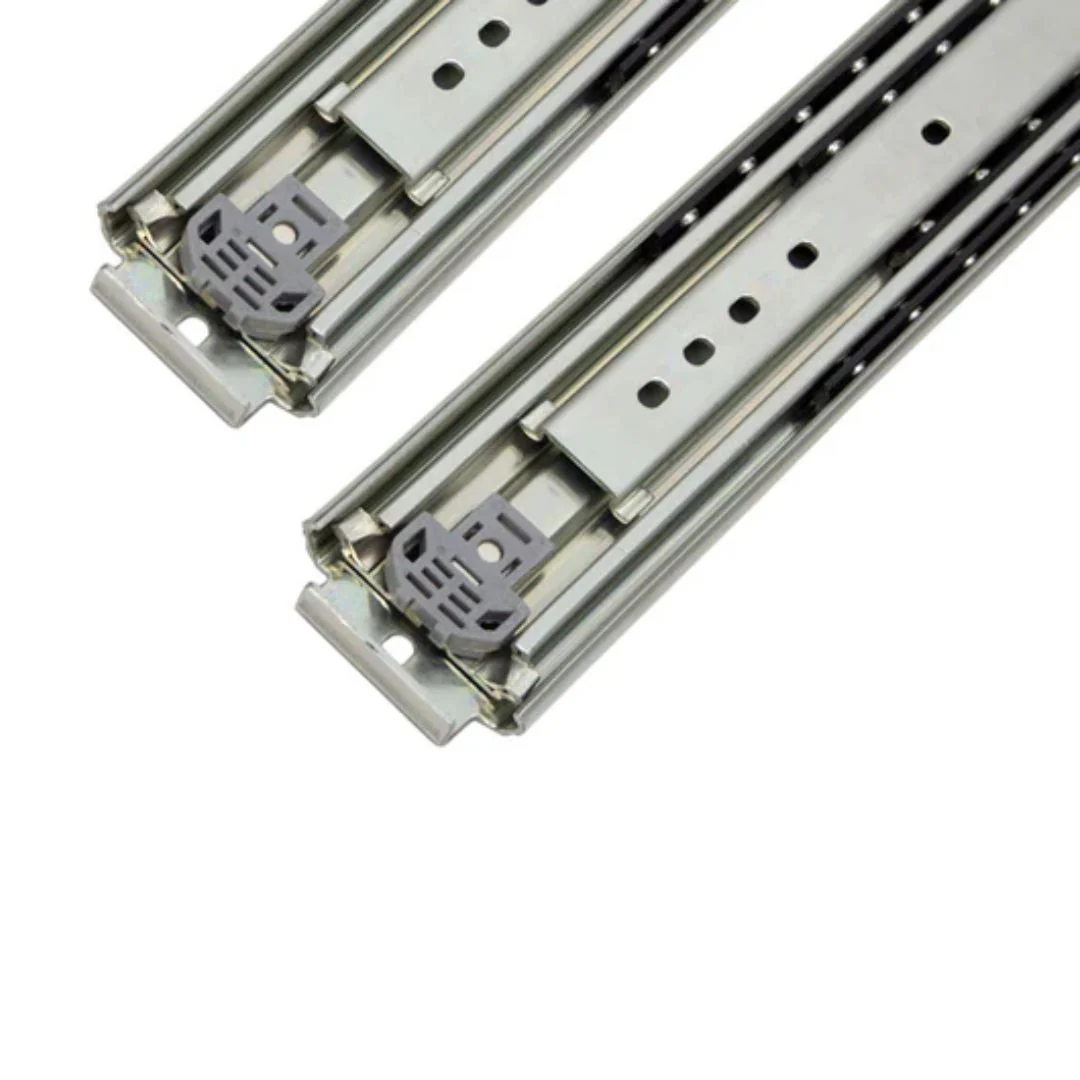

Heavy Duty Drawer Runner 1524mm - 250kg - Full Extension
Our IntAfit Heavy Duty Drawer Runner offers double extension. These runners are also known as container slides and produced by cold-rolled steel. The drawer runner is designed to be fitted between a unit side and a drawer side.
For alternative fixing options please see the "Fitting Brackets" section of the page.

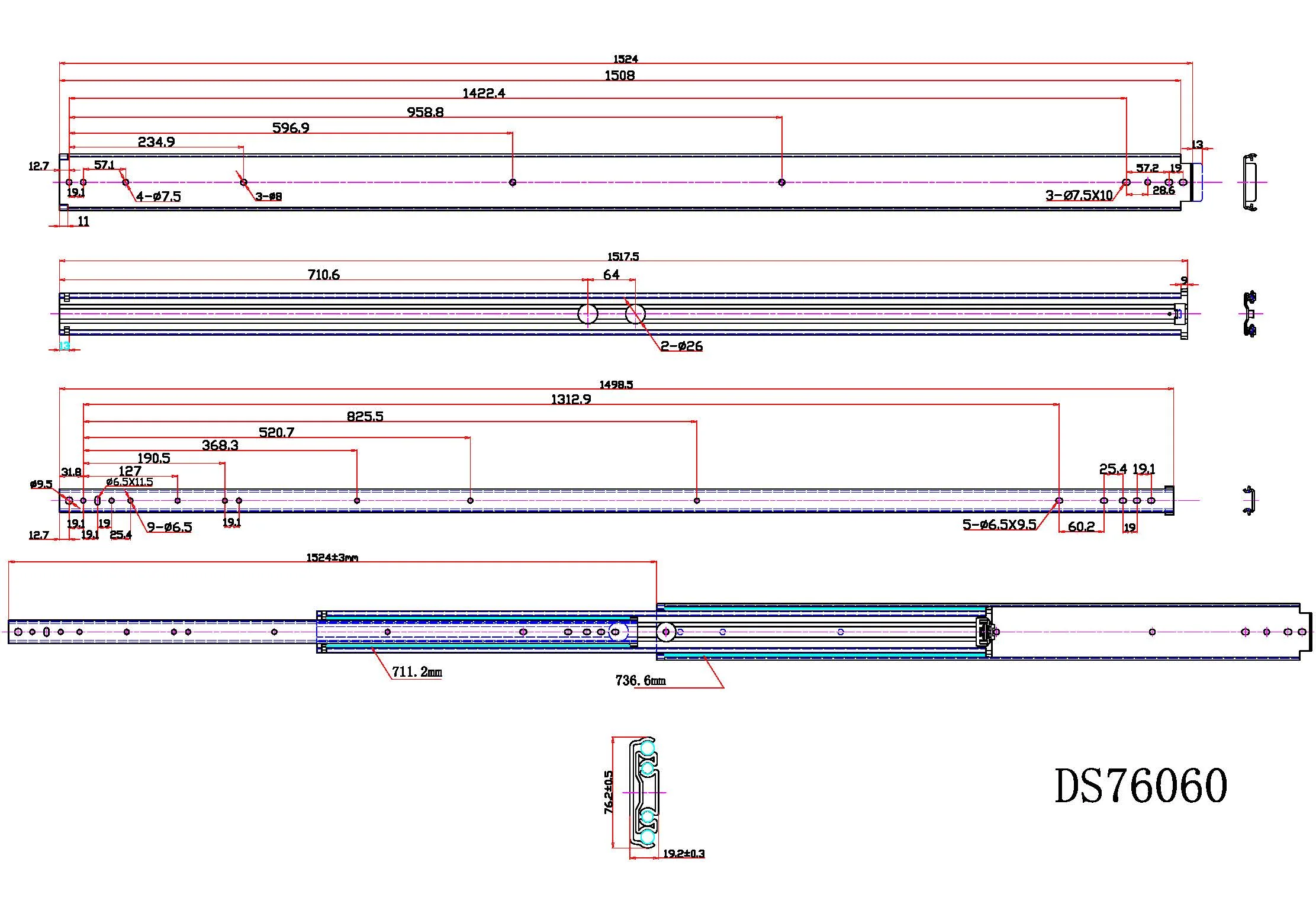

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.
Please click here to view our Help Guides & Advice page.
Specifications
- Quick Release: No (due to load rating)
- Closed length: 1524mm (60")
- Open length: 3048mm (120")
- Profile Height: 76mm
- Profile Width: 19.2mm
- Load Rating: 250kg (based on a 457mm runner)
- Range Sizes: 250 - 1524mm (10" - 60")
- Finish: Zinc Plated
- Fixing Method: Screw or Rivet
Applications
- Vehicle and campervan conversions
- Vehicle Storage
- Loft Eaves Storage
- Under stairs storage
- ATM's
- Vending machines
- Toolbox storage units
- Computer server storage
- Industrial machinery
*Please note: that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.
Push to open and soft close devices are not recommended to be used together with these runners due to the potential load.
Fitting Brackets
For alternative fixing options see the following mounting bracket sets...
Side Mounting Bracket Set For DS76060
Bottom Mounting Bracket Set For DS76060
Base Mounting Bracket Set For DS76060
Recommended Screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
6.3mm x 13mm Pozi Countersunk (Pack Of 50)
M6 x 16mm Button Head Socket Screw and M6 Nylon Insert Nut
Similar Products
Heavy Duty Drawer Runners
Additional Products
Push to Open Touch Locking Latch (rubber stopper on runner has to be removed for these to work)
