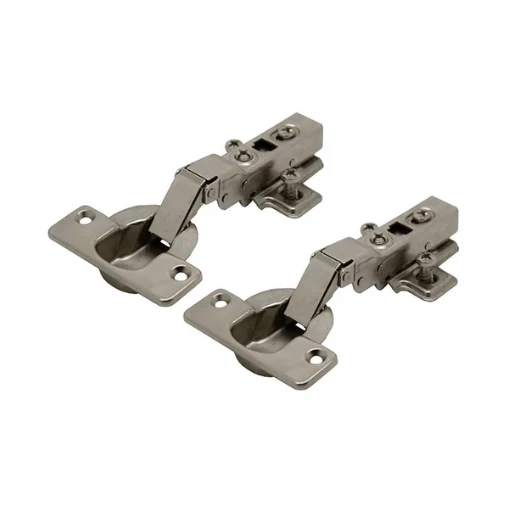

Series 61 Half Overlay 95° Clip On Soft Close 40mm Cup Hinge

Our Series 61 Half Overlay 95° Clip On Soft Close 40mm Cup Hinges are designed for doors that are larger or heavier than standard. Opening to 95°, this hinge gives you full access to the cabinet when the door is open, while ensuring a tight fit to the cabinet face when the door is closed.

Half overlay hinges are used by most kitchen manufacturers as they only partially conceal the cabinet frame. They are also commonly used for bedroom wardrobes. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.



Specifications



• Overlay: 12 - 24mm
• Opening Angle: 95 degrees
• Door Thickness: 16 - 30mm
• Cup Diameter: 40mm
• Cup Drilling Depth: 13mm
• Hinge Type: Clip On
• Material: Steel
• Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: Yes
• Plate: 0mm Plate
• Pack Contents: 2 Hinges, 2 Plates
