Series 63 Half Overlay 93° Clip On 40mm Cup Hinge

Our Series 63 Half Overlay 93° Clip On 40mm Cup Hinges are designed for doors that are larger or heavier than standard. Opening to 93°, this hinge gives you full access to the cabinet when the door is open, while ensuring a tight fit to the cabinet face when the door is closed.

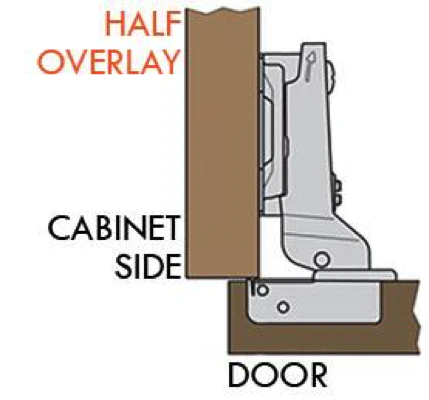

Half overlay hinges are used by most kitchen manufacturers as they only partially conceal the cabinet frame. They are also commonly used for bedroom wardrobes. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.







Specifications



• Overlay: 4 - 15mm
• Opening Angle: 93 degrees
• Door Thickness: 16 - 30mm
• Cup Diameter: 40mm
• Cup Drilling Depth: 13mm
• Hinge Type: Clip-On
• Material: Steel
• Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way
• Plate: 2mm Plate
• Pack Contents: 2 Hinges, 2 Plates
