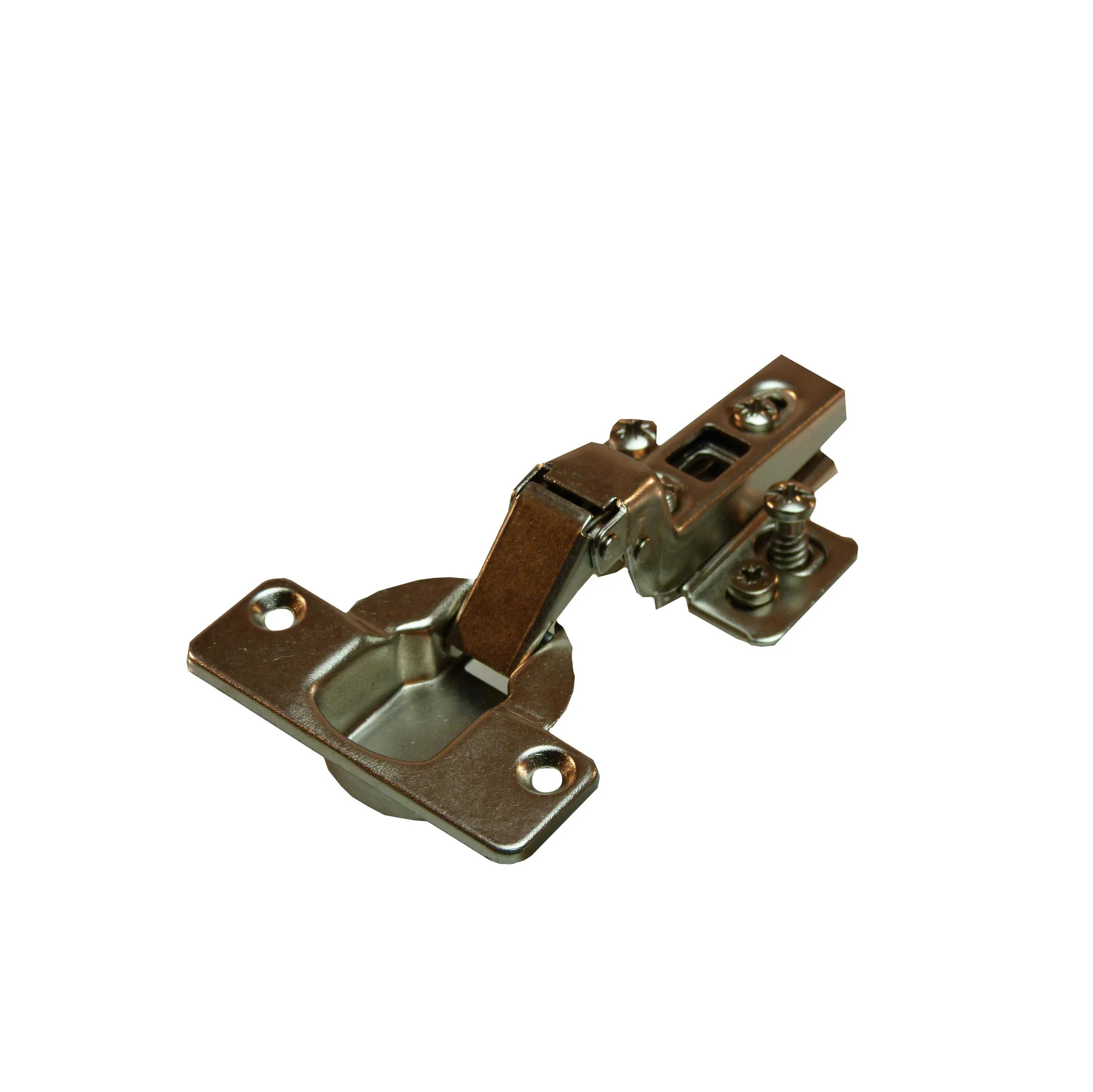

Series 63 Inset 110° Clip On Hinge On 35mm Cup Diameter

Our Series 63 Inset 110° Clip On Hinges can be adjusted using the euro screws for easy installation.

Opening to 110°, this hinge gives you full access to the cabinet when the door is open, while ensuring a tight fit to the cabinet frame when the door is closed.

Inset hinges are used by most kitchen manufacturers as they allow the door to sit inside the cabinet frame. However, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

 Please click here to view our Help Guides & Advice page.





Specifications



• Overlay Adjustment: +/- 2mm
• Opening Angle: 110 degrees
• Door Thickness: 14 - 22mm
• Side Thickness: N/A
• Cup Diameter: 35mm
• Hole Centres: 48mm
• Hinge Type: Clip On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way
• Plate: 2mm Cam Adjustable
• Pack Contents: 2 Hinges, 2 Plates





Tools & fittings for the job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
