Series 63 Full Overlay 110° Clip On Hinge On 35mm Cup Diameter

Our Series 63 Full Overlay 110° Clip On Hinge can be adjusted using the euro screws for easy installation.

Opening to 110° this hinge gives you full access to the cabinet when the door is open, while ensuring a tight fit to the cabinet face when the door is closed.

Full overlay hinges are used by most kitchen manufacturers as they completely hide/conceal the cabinet that the doors are attached to. However, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance. Please click here to view our Help Guides & Advice page.





Specifications

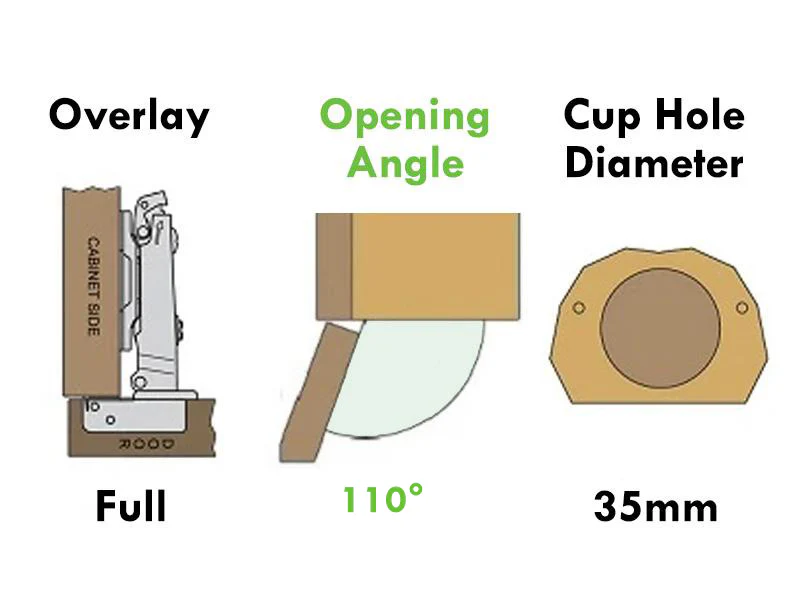

• Overlay Adjustment: +/- 2mm
• Opening Angle: 110 degrees
• Door Thickness: 14 - 26mm (Please note that a door thickness over 20mm will require a slight outer edge profile/chamfer)
• Side Thickness: 18mm
• Cup Diameter: 35mm
• Hole Centres: 48mm
• Hinge Type: Clip-On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way
• Plate: 0mm Cam Adjustable
• Pack Contents: 2 Hinges, 2 Plates





Tools & fittings for the job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
