Series 61 Inset 105° Clip On Hinge On 35mm Cup Diameter

Our Series 61 Inset 105° Clip On Hinge can be adjusted using the euro screws for easy installation.

Opening to 105°, this hinge gives you full access to the cabinet when the door is open, while ensuring a tight fit to the cabinet frame when the door is closed.

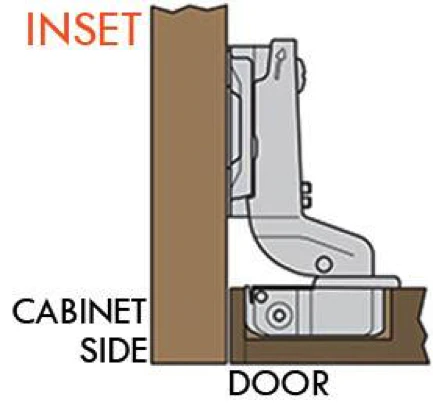

Inset hinges are used by most kitchen manufacturers as they allow the door to sit inside the cabinet frame. However, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

 Please click here to view our Help Guides & Advice page.





Specifications



• Overlay Adjustment: +/-3mm
• Opening Angle: 105 degrees
• Door Thickness: 14 - 22mm
• Weight Capacity Per Pair: 7.2kg
• Side Thickness: N/A
• Cup Diameter: 35mm
• Hinge Type: Clip On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Adjustment: 3 way
• Plate: 0mm Plate
• Pack Contents: 2 Hinges, 2 Plates
