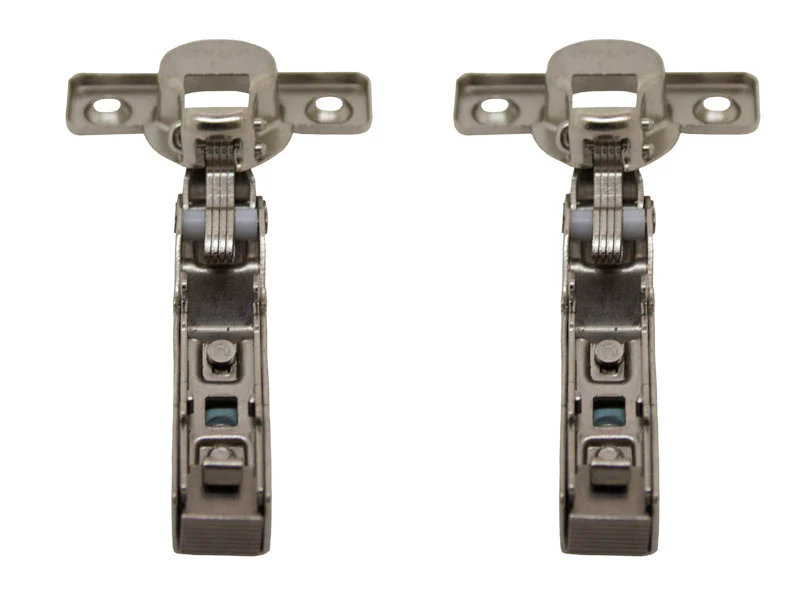

Tutti Cabinet Clip On Un-Sprung Mini Hinge Full Overlay 95°

Our Tutti Un-Sprung Mini Hinge for 12 - 18mm overlay applications are ideal for door thicknesses as thin as 12mm and are mainly found in boats, caravans and furniture. These Tutti Hinges are premium mini hinges, due to the strong internal hinge arm mechanism and being extremely robust.



This hinge is an un-sprung hinge means that you will need a catch to hold the door in place and means there is no resistance from the hinge against opening and closing.



Specifications



• Overlay: 12 - 18mm
• Opening Angle: 95 degrees
• Door Thickness: 12 - 18mm
• Side Thickness: 18mm
• Cup Diameter: 26mm
• Plate Type: Clip On
• Material: Steel
• Finish: Nickel Plated
• Self Closing: No
• Soft Closing: No
• Plate: 0mm Plate
• Pack Contents: 2 Hinges & 2 Mounting Plates





Tools & fittings for the job

26mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

Please click HERE to see our range of catches
