Tutti Clip On Cabinet Mini Hinge Full Overlay 95°

Our Tutti Clip On Cabinet Mini Hinges are ideal for door thicknesses as thin as 12mm and are mainly found in boats, caravans and  bathroom furniture. These Tutti Hinges are premium mini hinges, due to the strong internal hinge arm mechanism and being extremely robust.

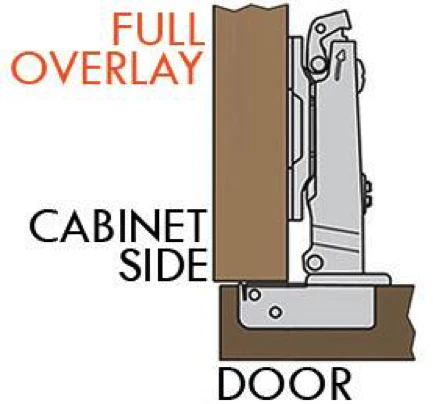

Full overlay hinges are used by most kitchen manufacturers as they completely hide/conceal the cabinet that the doors are attached to. However, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Overlay: 12 - 18mm
• Opening Angle: 95 degrees
• Door Thickness: 12 - 18mm
• Side Thickness: 18mm
• Cup Diameter: 26mm
• Plate Type: Clip On
• Material: Steel
• Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Plate: 0mm Plate
• Pack Contents: 2 Hinges & 2 Mounting Plates





Tools & fittings for the job

26mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
