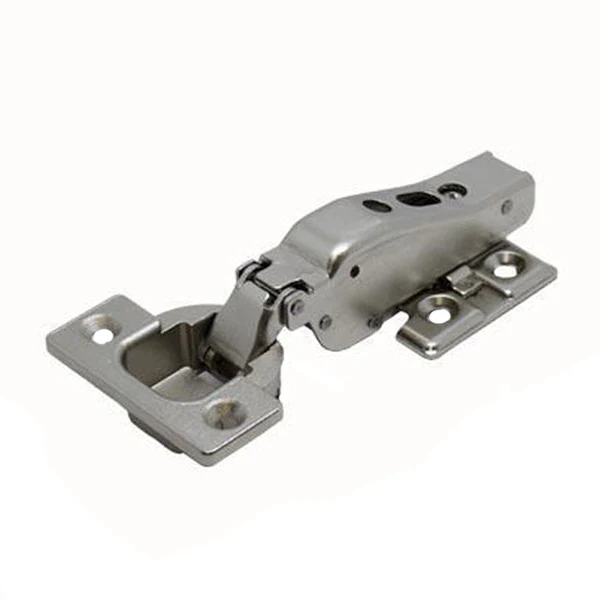

Sugatsune Heavy Duty 3/4 Overlay Clip On Hinge 95°

Our Sugatsune Heavy Duty Clip On 3/4 Overlay concealed hinge is ideal for doors up to 30mm in thickness and weighing up to 40kg.

Opening to 95°, this hinge gives you full access to the cabinet when the door is open, while ensuring a tight fit to the cabinet face when the door is closed.

Overlay hinges are used by most kitchen manufacturers. However, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.

Mounting plates and screws are not supplied with the hinge but are available below.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance. Please click here to view our Help Guides & Advice page.





Specifications



• Overlay Adjustment: +/- 3mm
• Opening Angle: 95 degrees
• Door Thickness: 18 - 30mm
• Side Thickness: 18mm
• Cup Diameter: 40mm
• Hinge Type: Clip On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way
• Maximum door weight: 25kg when using a pair of hinges, 40kg when using 3 hinges per door
• Pack Contents: 1 Hinges, 1 Plates

• Plate: 0mm Mounting
• Suppliers Code: J95-C24/16T
