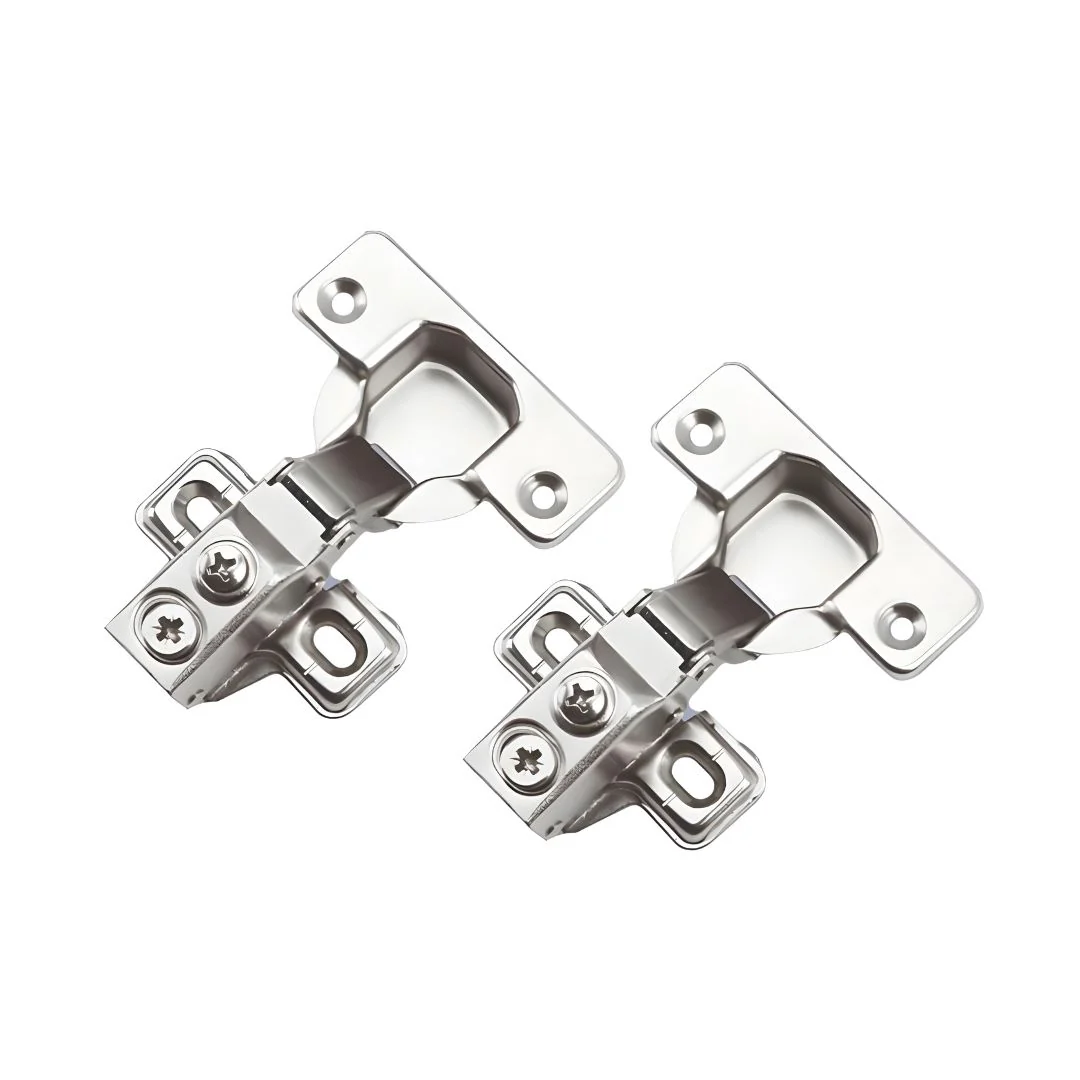

Tutti Full Overlay Soft Close Short Arm Cabinet Hinge 100°

Our Tutti Short Arm Cabinet / Face Frame Hinge has a built in soft close feature that prevents the door from slamming shut. Ideal for half overlay applications with an opening angle of up to 100 degrees. Short arm hinges are ideal for tight spaces where you don't have the room to fit standard concealed hinges.

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.

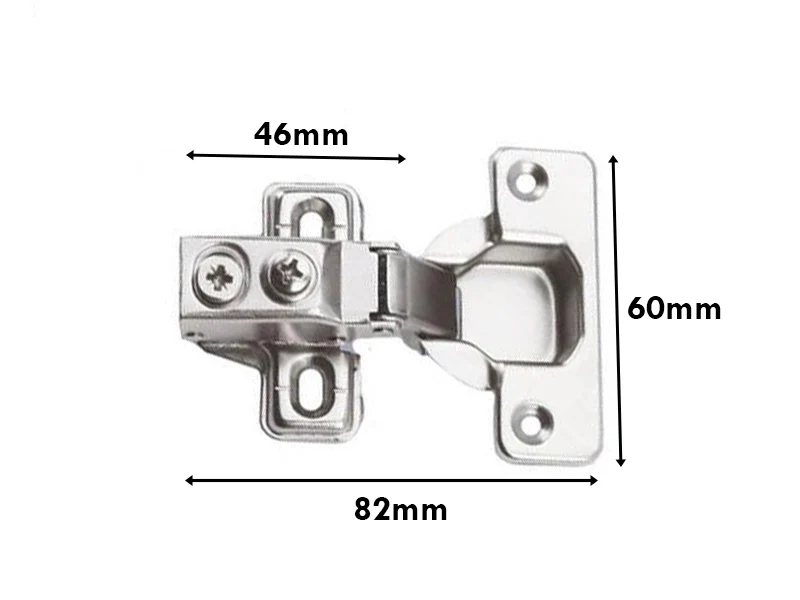

Specifications



• Hinge Type: Face Frame
• Material: Steel
• Finish: Nickel Plated
• Overlay: 16mm
• Opening Angle: 100°
• Door Thickness: 14 - 22mm
• Cup Diameter: 35mm
• Cup Drilling Depth: 11.3mm
• Soft Closing: Yes
• Adjustment: +/- 1.5mm adjustment
• Pack Contents: 2 Hinges & 2 Mounting Plates
