Series 61 Half Overlay 105° Clip On Soft Close Hinge

Our Series 61 Half Overlay 105° Clip On Soft Close Hinge has an opening angle of up to 105 degrees, giving you full access to the cupboard. Half Overlay hinges are used by most kitchen manufacturers, however, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

 Please click here to view our Help Guides & Advice page.





Specifications



• Hinge Type: Clip On
• Material: Steel
• Hinge Finish: Nickel Plated
• Overlay Adjustment: +/- 3mm
• Opening Angle: 105 Degrees
• Door Thickness: 14 - 22mm
• Side Thickness: 18mm
• Cup Diameter: 35mm
• Self Closing: Yes
• Soft Closing: Yes
• Adjustment: 3 way

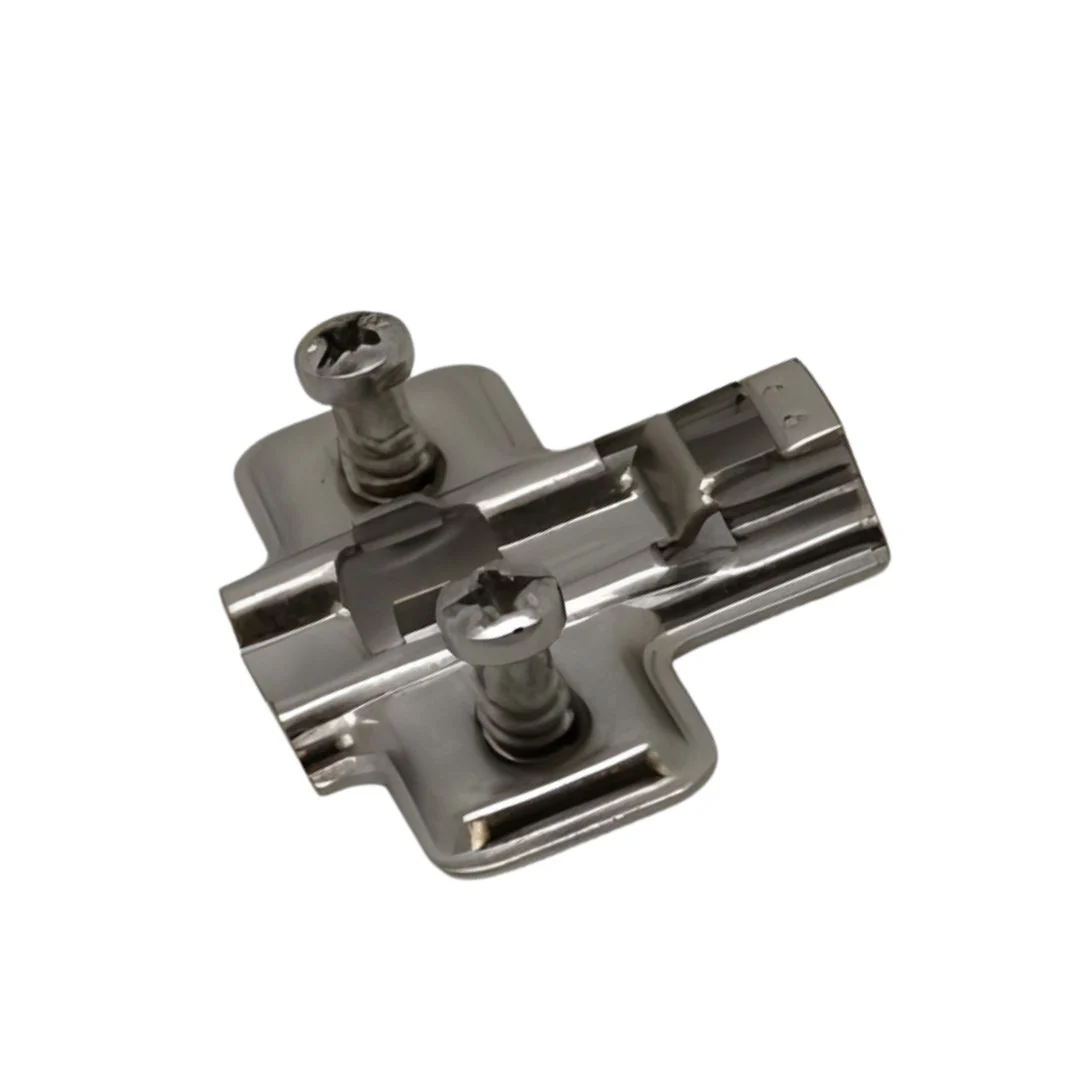

• Plate: 0mm Plate
• Pack Contents: 2 Hinges, 2 Plates
