IntAfit Inset Soft Close Framed Cabinet Hinge Pack 105°

This set includes IntAfit Soft Close Cabinet hinges for Inset applications, Mounting Plates,  Spacers and Fixing Screws.

The built-in damper on the hinge prevents the door from slamming shut. These adaptable hinges can be opened to two different angles: 95 and 105 degrees.

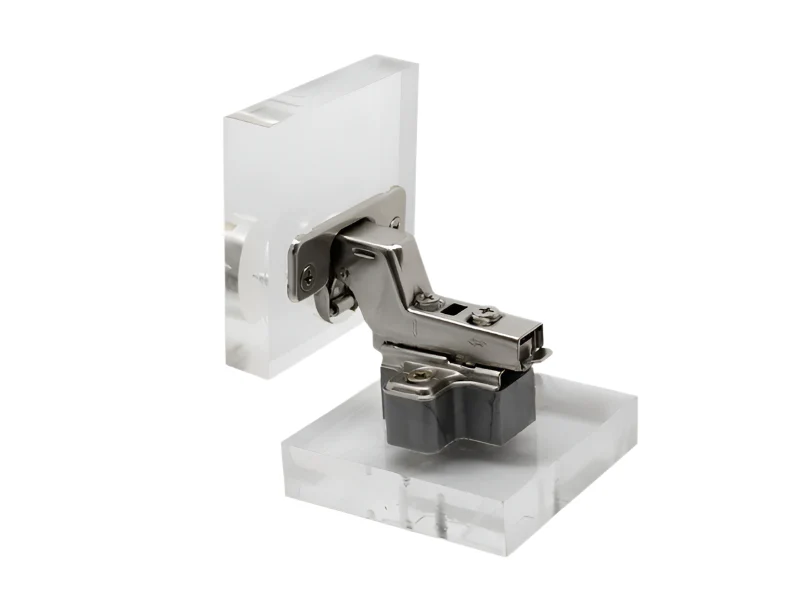

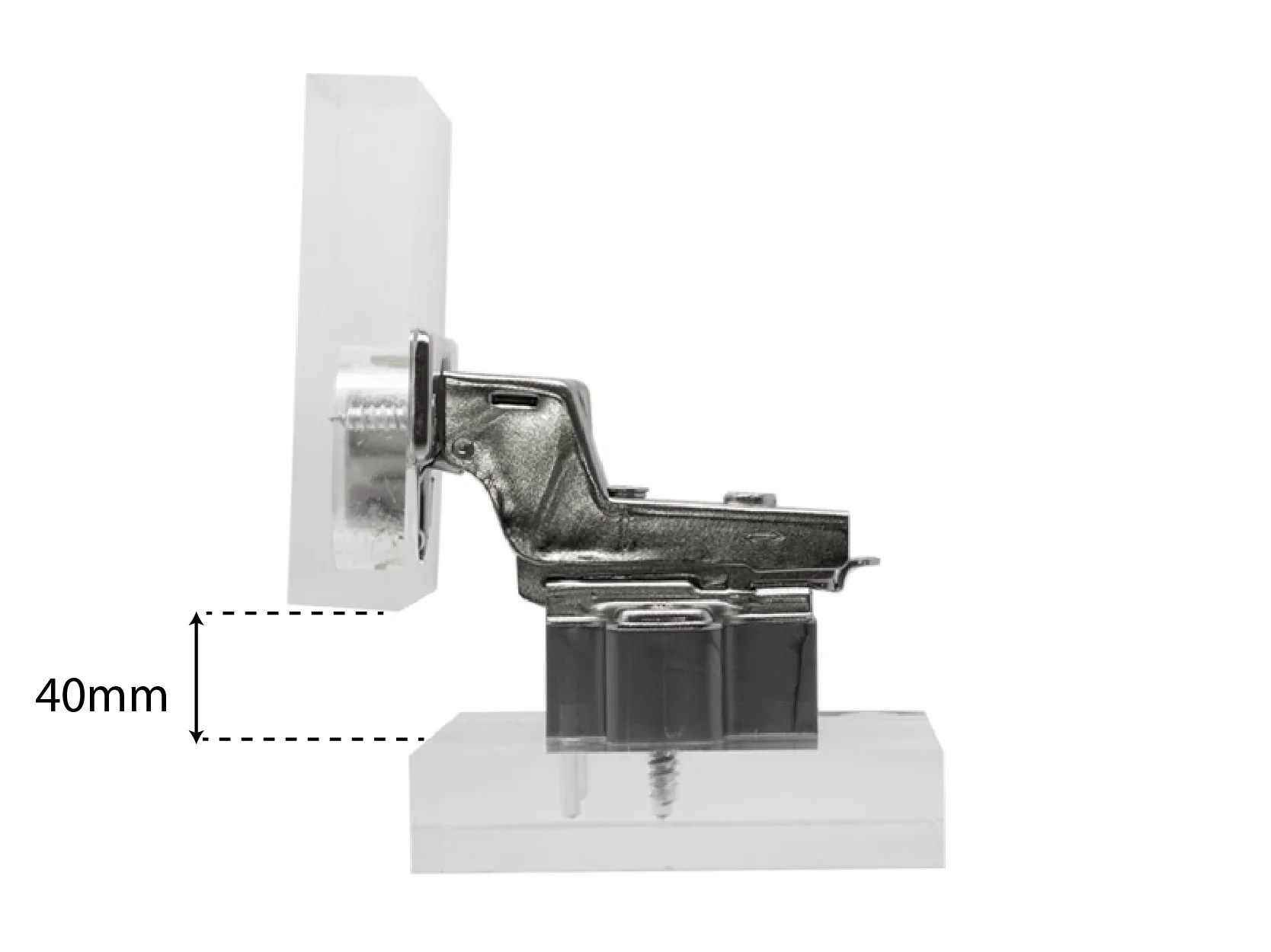

The Mounting Plate Plastic Spacer is a great base for hinges to give additional height, simply screw your hinges plate using 30mm screws onto the side panel to secure. This will space hinges to the correct position for traditional framed door unit inset applications (To suit 35 - 38 mm frames - as shown in the second image)



Specifications



• Overlay Adjustment: +/- 3mm
• Depth Adjustment: +/- 2mm

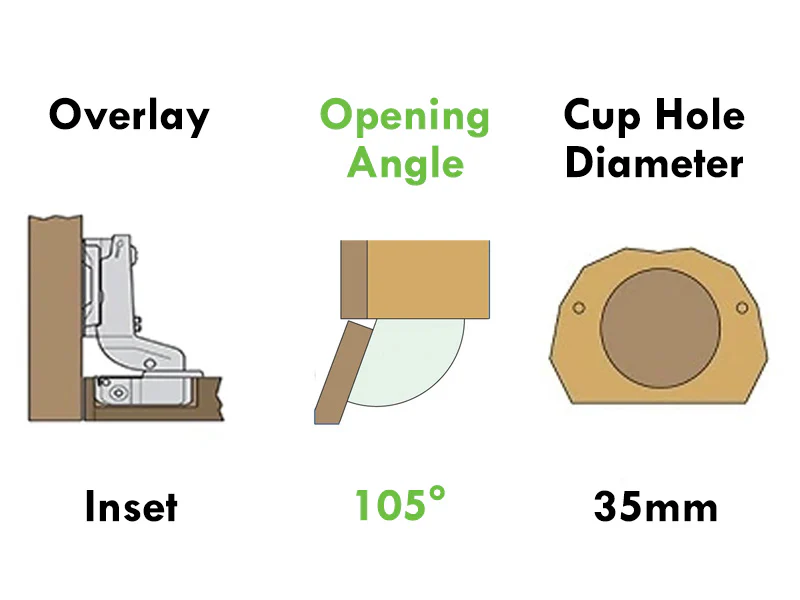

• 2 x Option Opening Angle: Can be opened to either 95 or 105 degrees
• Door Thickness: 14 - 22mm
• Side Thickness: N/A

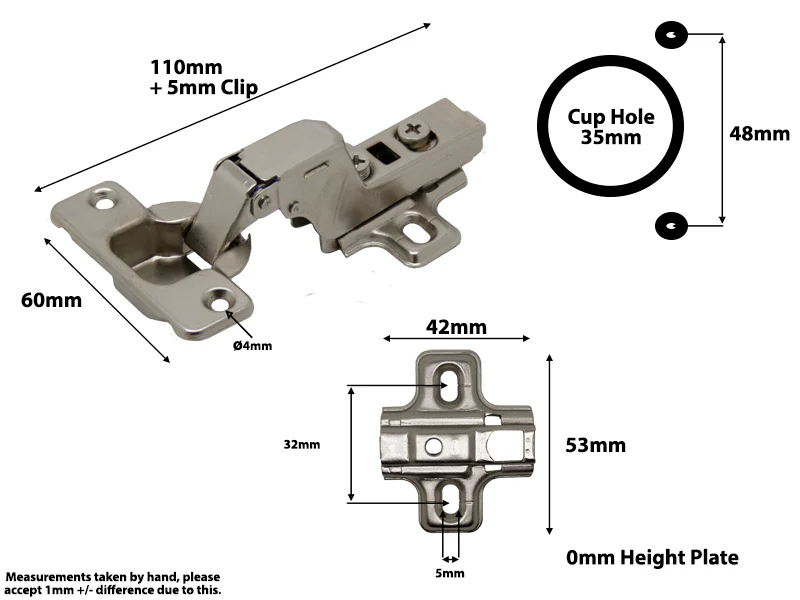

• Cup Diameter: 35mm
• Hole Centres: 48mm
• Hinge Type: Clip-On
• Spring: 2-part (pushes the door open to 95° then no pressure)
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: Yes
• Adjustment: 3 way
• Plate: 0mm Plate
• Pack Contents: 2 Hinges, 2 Mounting Plates, 2 Spacers & 4 csk woodscrews (8G x 1 1/4").





Mounting Plate Spacer Features



• Fixing: Screw on
• Height: 17 mm
• Screw Gap Width: 32 mm
• Material:  Plastic
• Sold As:  Pair



Tools & fittings for the job

35mm hole cutter
