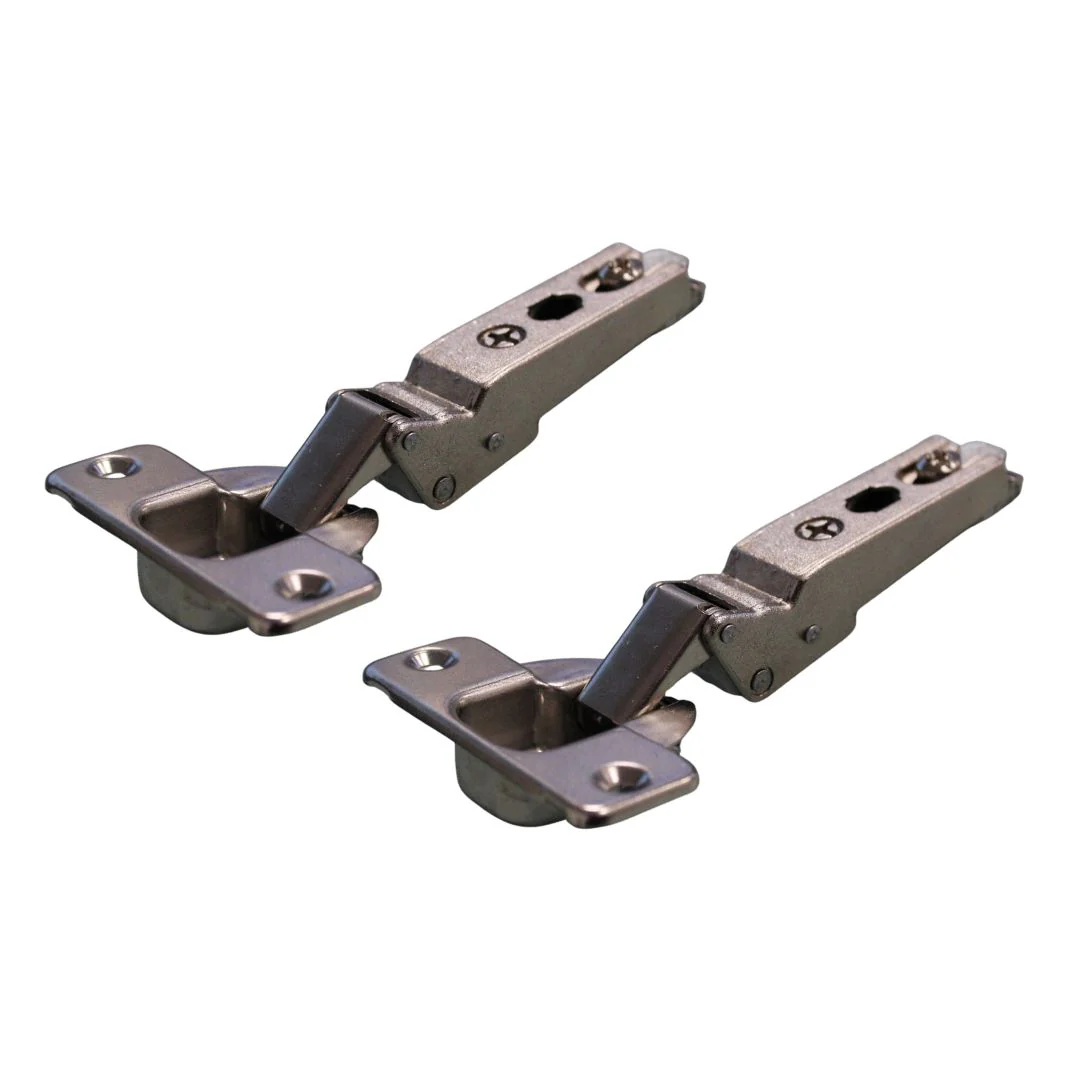

Grass 125° Hinge for 24° Negative Angle Applications - Nickel

Our Grass 125° Hinge for 24° Negative Angle Applications are specially designed for awkward spaces. These special angle cabinet hinge enables the door to open up to 125°,  which minimises the risk of collision and promotes greater access to storage items.

These hinges are mainly found in kitchen and utility furniture.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Angle: 24 Degrees
• Overlay: 14 - 18mm
• Opening Angle: 125 degrees
• Door Thickness: 14 - 18mm
• Cup Diameter: 35mm
• Cup Drilling Depth: 11.8mm
• Hinge Type: Clip On
• Material: Steel
• Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No (compatible with soft close dampers)
• Adjustment: 3 way
• Pack Contents: 2 Hinges & 2 Mounting Plates





Tools & Fittings For The Job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
