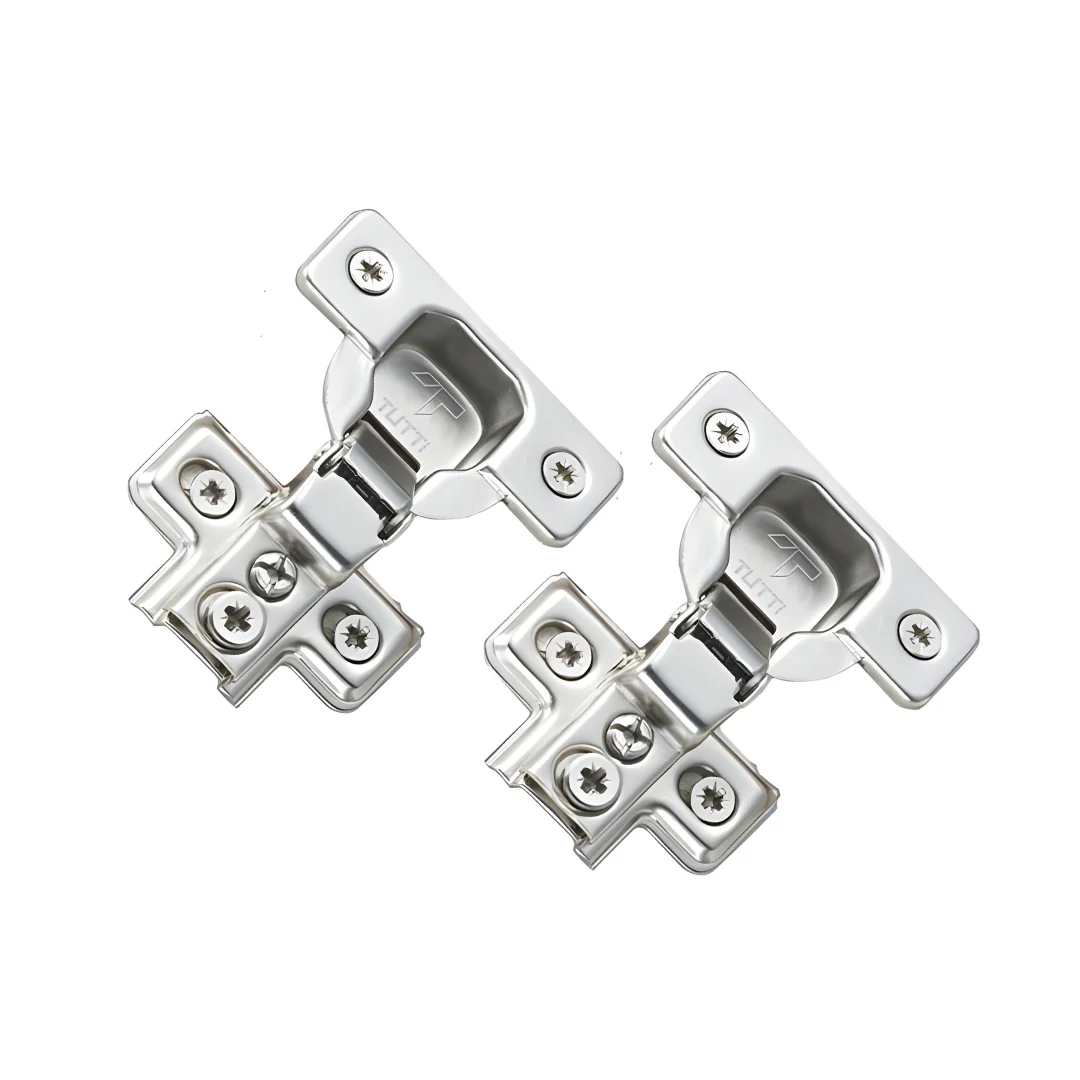

Tutti Face Frame Cabinet Hinge 16mm Overlay 110°

Our Tutti Face Frame hinge is designed to replace standard hinges that can no longer be secured to the cabinet side due to damage.

Please note that the hinge arm and mounting plate are connected

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Hinge Type: Face Frame
• Material: Steel
• Finish: Nickel Plated
• Overlay: 16mm
• Opening Angle: 110 degrees
• Door Thickness: 14 - 22mm
• Arm Depth: 31mm
• Cup Diameter: 35mm
• Cup Drilling Depth: 11mm
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way (up to ± 2mm)
• Pack Contents: 2 Hinges





Tools & Fittings

35mm Hole Cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
