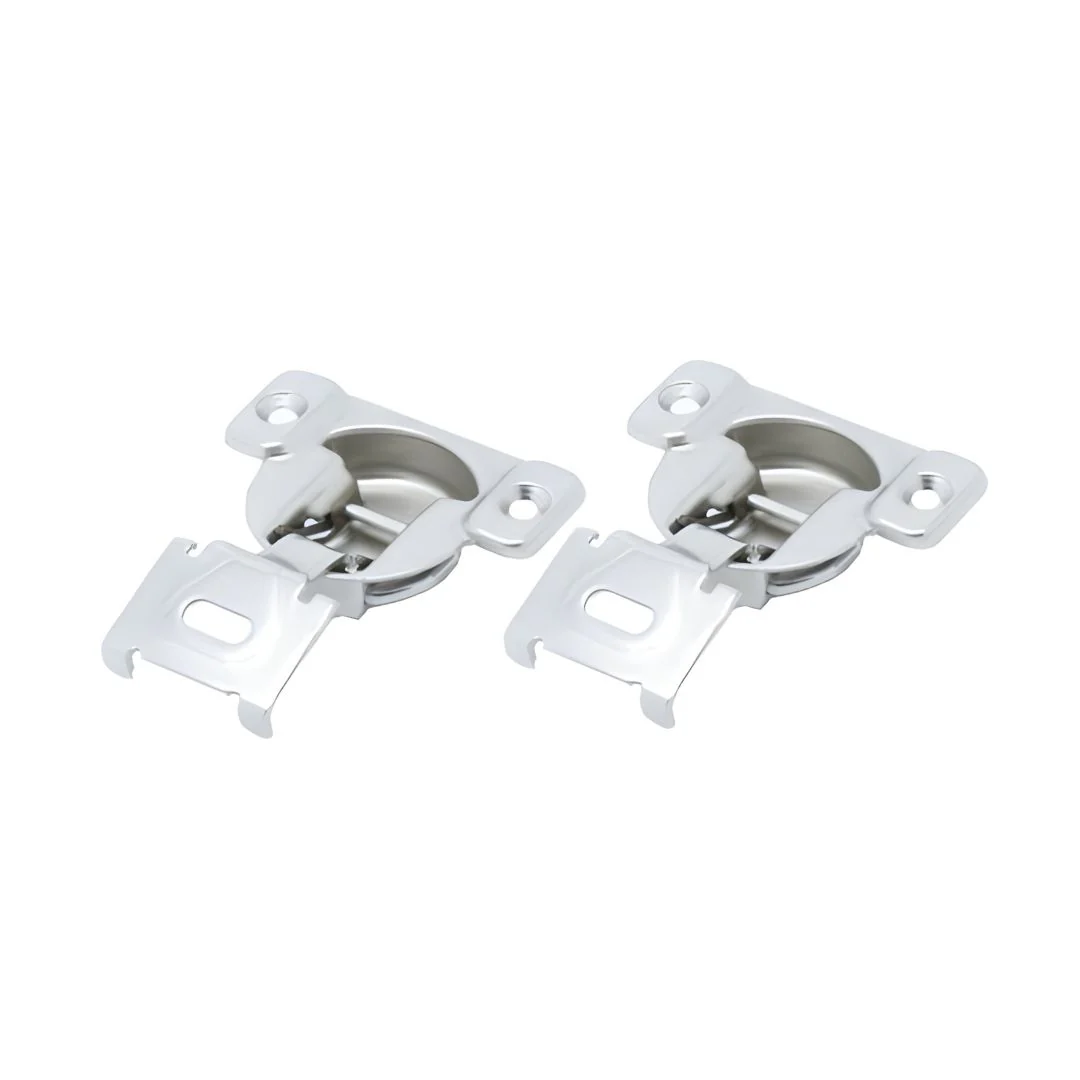

Tutti 13mm Overlay Face Frame Cabinet Hinge 105°

Our Tutti Surface Mount Face Frame hinge with 13mm Overlay is designed for doors surface mounted onto Face Frames where 90° cabinet sides are not present. The plate screws on to the end of the Front Face allowing the cabinet door to be mounted on the front, opening to 105°.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Hinge Type: Face Frame
• Material: Steel
• Finish: Nickel Plated
• Overlay: 13mm
• Opening Angle: 105 degrees
• Door Thickness: 14 - 22mm
• Cup Diameter: 35mm
• Cup Drilling Depth: 11mm
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way
• Pack Contents: 2 Hinges





Tools & Fittings

35mm Hole Cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc



Alternative Hinges

Face Frame Hinge - 105 Deg - 16mm Overlay

Face Frame Hinge - 105 Deg - 25mm Overlay

Face Frame Hinge - 105 Deg - 35mm Overlay

Face Frame Hinge - 110 Deg - 16mm Overlay
