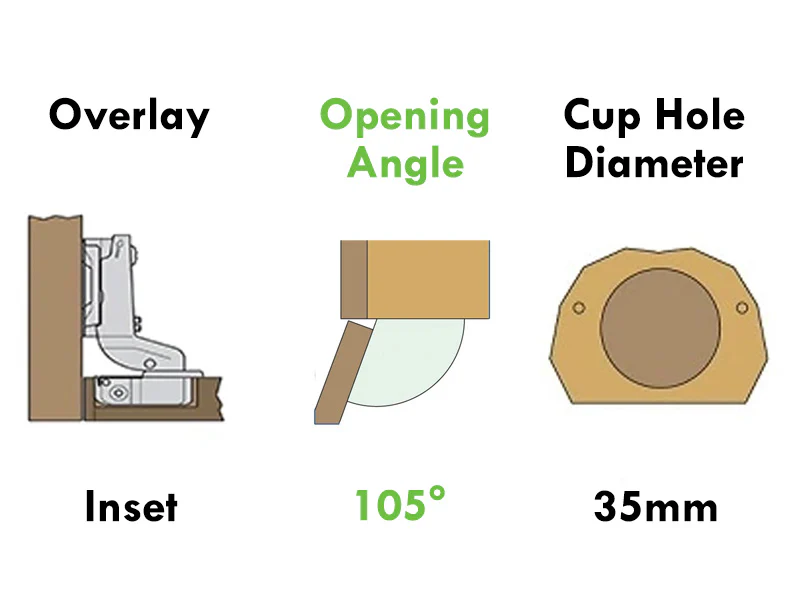

IntAfit Inset Soft Close Cabinet Hinge 105° On 35mm Cup Diameter

Our IntAfit Soft Close Cabinet Hinge for Inset applications has a built-in damper which prevents the door from slamming shut. These hinges are commonly known as Kitchen hinges but are used in all types of furniture. These adaptable hinges can be opened to two different angles: 95 and 105 degrees.

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Overlay Adjustment: +/- 3mm
• Depth Adjustment: +/- 2mm
• 2 x Option Opening Angle: Can be opened to either 95 or 105 degrees
• Door Thickness: 14 - 22mm
• Side Thickness: N/A
• Cup Diameter: 35mm
• Hole Centres: 48mm
• Hinge Type: Clip-On
• Spring: 2-part (pushes the door open to 95° then no pressure)
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: Yes
• Adjustment: 3 way
• Plate: 0mm Cam Adjustable
• Pack Contents: 2 Hinges, 2 Plates





Tools & fittings for the job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
