IntAfit Cabinet Hinge Full Overlay 95° or 105° On 35mm Cup Diameter
HomeStore

IntAfit Cabinet Hinge Full Overlay 95° or 105° On 35mm Cup Diameter

IntAfit Cabinet Hinge Full Overlay 95° or 105° On 35mm Cup Diameter

Our IntAfit Full Overlay Cabinet Hinges are clip on and can be adjusted using the euro screws for easy installation.

Opening to either 95° or 105°, this hinge gives you full access to the cabinet when the door is open, while ensuring a tight fit to the cabinet face when the door is closed.

Full overlay hinges are used by most kitchen manufacturers as they completely hide/conceal the cabinet that the doors are attached to. However, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.





Specifications



  • Overlay Adjustment: +/- 3mm
  • Depth Adjustment: +/- 2mm
  • 2 x Option Opening Angle: Can be opened to either 95 or 105 degrees
  • Door Thickness: 14 - 22mm
  • Side Thickness: 15-19mm
  • Cup Diameter: 35mm
  • Hole Centres: 48mm
  • Hinge Type: Clip-On
  • Material: Steel
  • Hinge Finish: Nickel Plated
  • Self Closing: Yes
  • Soft Closing: No
  • Adjustment: 3 way
  • Zero Protrusion: No
  • Pack Contents: 2 Hinges, 2 (0mm) Plates
  • Plate: 0mm Cam Adjustable
  • Fixing Screws Sold Separately




Tools & fittings for the job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc



Similar Products

Tutti Cabinet Hinge Soft Close Full Overlay 105° Pair

Tutti Cabinet Hinge Full Overlay 110° Pair

$0.85

Original: $2.42

-65%
IntAfit Cabinet Hinge Full Overlay 95° or 105° On 35mm Cup Diameter

$2.42

$0.85

More Images

IntAfit Cabinet Hinge Full Overlay 95° or 105° On 35mm Cup Diameter - Image 2

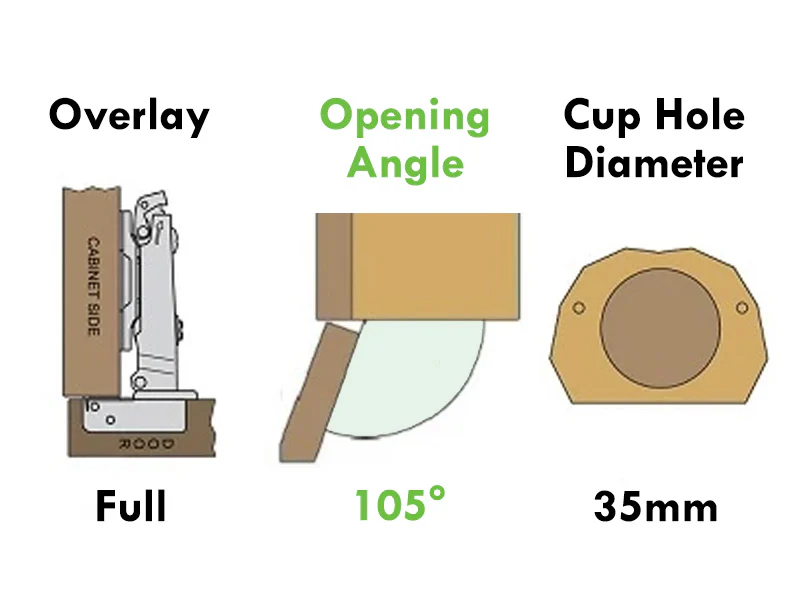

IntAfit Cabinet Hinge Full Overlay 95° or 105° On 35mm Cup Diameter - Image 3
