Tutti Special Angle Full Overlay Slide On Cabinet Hinge 165°

Our Tutti Special Angle Full Overlay Cabinet Hinges are slide on and can be adjusted using the euro screws for easy installation.

Opening to 165°, this hinge gives you full access to the cabinet when the door is open, while ensuring a tight fit to the cabinet face when the door is closed.



Full overlay hinges are used by most kitchen manufacturers as they completely hide/conceal the cabinet that the doors are attached to. However, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.

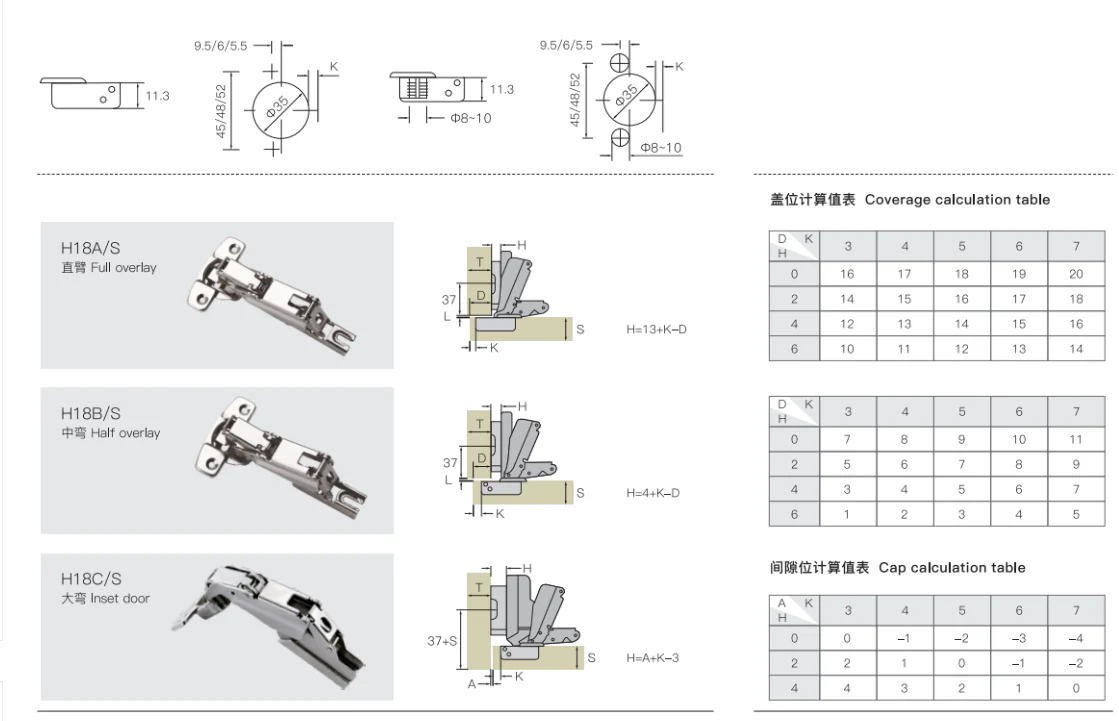

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Opening Angle: 165 degrees
• Door Thickness: 14 - 22mm
• Side Thickness: 15-18mm
• Cup Diameter: 35mm
• Hole Centres: 48mm
• Hinge Type: Slide-On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Plate: 0mm Plate
• Pack Contents: 2 Hinges, 2 Plates





Tools & Fittings For The Job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
