Sugatsune S/Steel Surface Mount Torque Hinge 180 Deg - Medium Duty

Our Sugatsune surface mount torque hinges are in a stainless steel finish, open up to 180 degrees and are available in three different strengths depending on the torque required. This hinge with friction torque holds a lid/door in its desired position and is free stop between 0-180 degrees. It's also made from stainless steel which reduces corrosion and can withstand harsh environments.

 NOTE: Minimum 2 Hinges are need for 1 door.







Specifications



• Opening Angle: 180 Degree
• Finish: Polished Stainless Steel
• Weight Loading: Medium
• Torque Range: 7.1 KGF-CM



Torque Calculation: door height(cm) x ½ x door weight(kg) = kg/cm pair

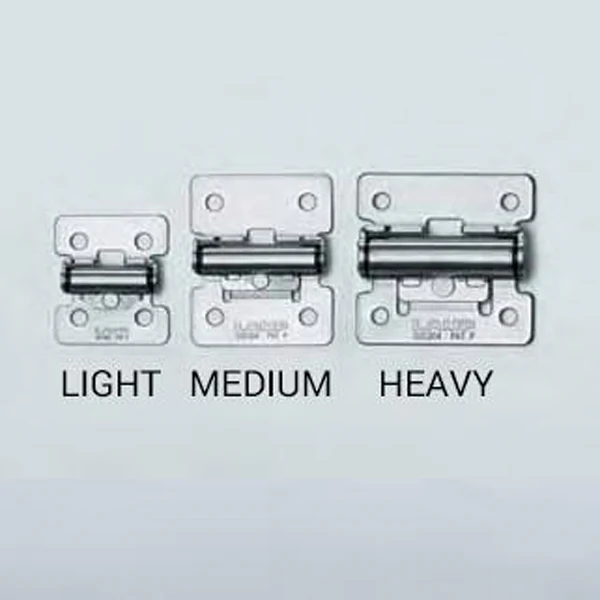

Strength	Torque per piece (kgf-cm)
Light Duty	3.6 (+40%/-20%)
Medium Duty	7.1 (+40%/-20%)
Heavy Duty	15.3 (+40%/-20%)
