Concealed Hinge 43 x 11mm Satin Chrome (Min Door Thickness: 13mm)
Our Concealed Mortice/Soss Door Hinge is ideal for marine or caravan use - with multiple size(door weight) options available. Zinc alloy body with stainless steel components.
Ā
Ā
Ā
Specifications
Ā
- Length: 43mm
- Width: 11mm
- Operating Angle: 180 Degrees
- Finish: Satin Chrome
- Minimum Door Thickness: 13mm
- Easy to fit
-
Screws & Fittings: NOT supplied.
Ā

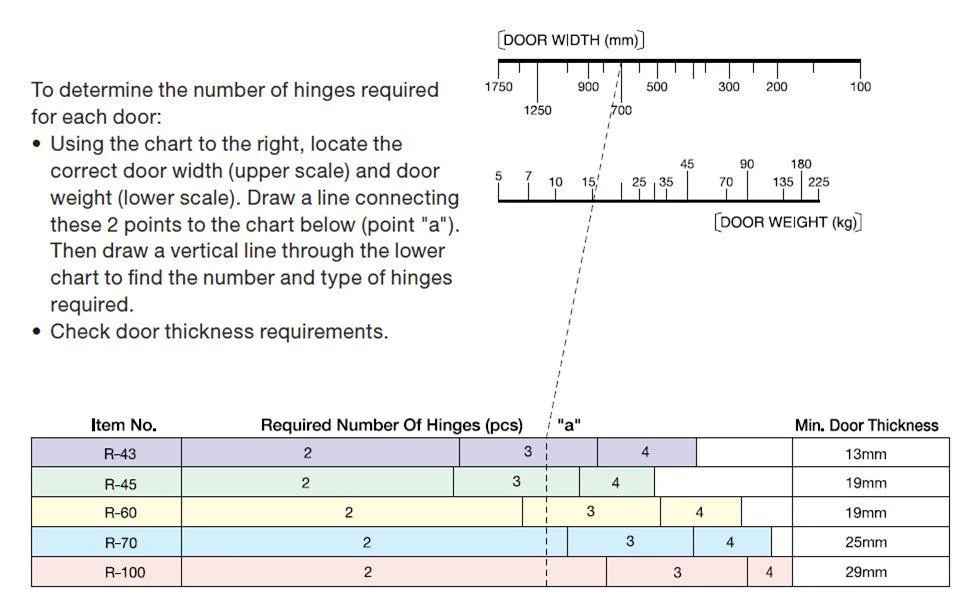

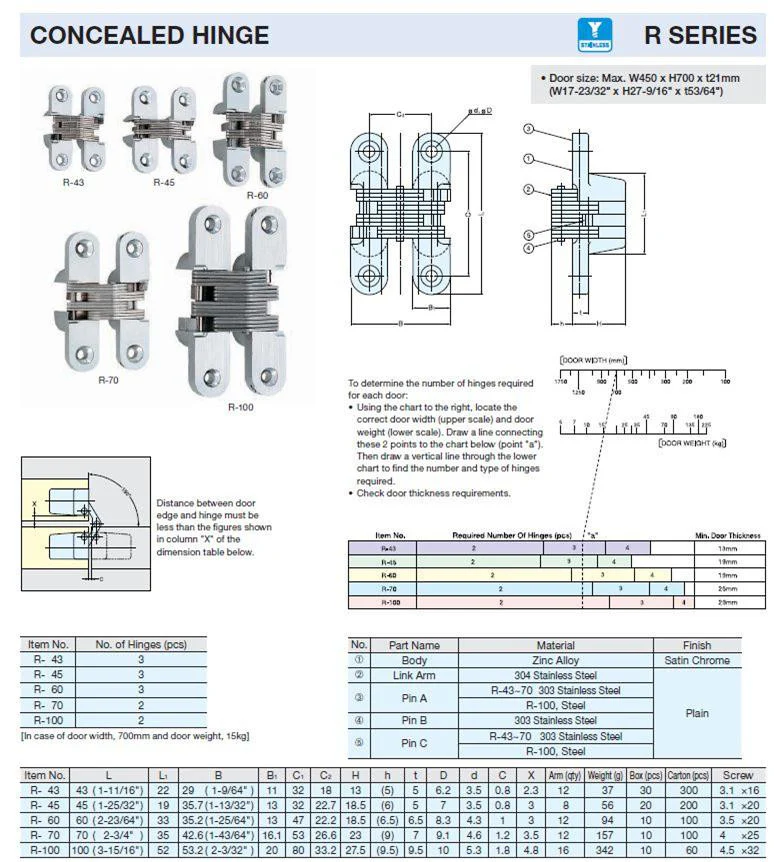

Sold individually (Please check the chart available on the spec sheet to determine number of hinges needed for your door).
Ā
Similar Products
- R-43 - 43mm Hinge (HF00008)
- R-45 - 45mm Hinge (HF00072)
-
R-70 - 70mm Hinge (HF00073)
Original: $12.75
-65%$12.75
$4.46More Images



Concealed Hinge 43 x 11mm Satin Chrome (Min Door Thickness: 13mm)
Our Concealed Mortice/Soss Door Hinge is ideal for marine or caravan use - with multiple size(door weight) options available. Zinc alloy body with stainless steel components.
Ā
Ā
Ā
Specifications
Ā
- Length: 43mm
- Width: 11mm
- Operating Angle: 180 Degrees
- Finish: Satin Chrome
- Minimum Door Thickness: 13mm
- Easy to fit
-
Screws & Fittings: NOT supplied.
Ā
Sold individually (Please check the chart available on the spec sheet to determine number of hinges needed for your door).
Ā
Similar Products
- R-43 - 43mm Hinge (HF00008)
- R-45 - 45mm Hinge (HF00072)
-
R-70 - 70mm Hinge (HF00073)
