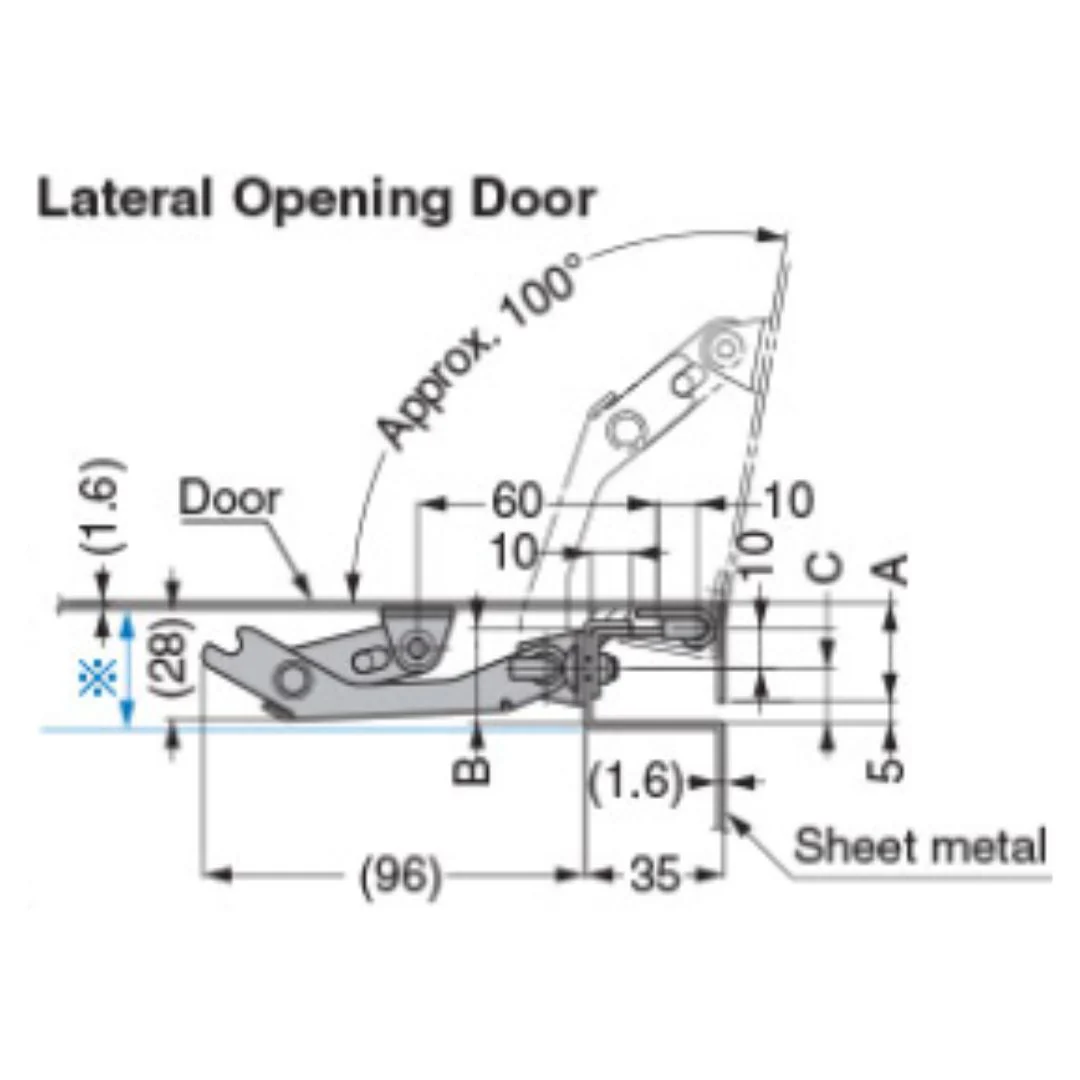

Concealed Hinge with Stay For Sheet Metal 100°

A combination of Sugatsune hinge and stay, this Concealed Hinge is designed for sheet metal application. The stay holds the door at a 100° open position. Having a removable pin allows for easy door installation. Ideal for metal storage cupboards, control cabinets and communication equipment.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Material: Stainless Steel
• Finish: Barrel Polished
• Holding force: 30 kgfEcm/piece
• Door weight: Max. 10 kg/pair
• Retaining Torque cN.m/pc: 294
• Retaining Torque kgf.cm/pc: 30
• Manufacturer Code: HG-YS65C



Suitable For

• Measurement/Communication Equipment
• Commercial
• Professional Use
