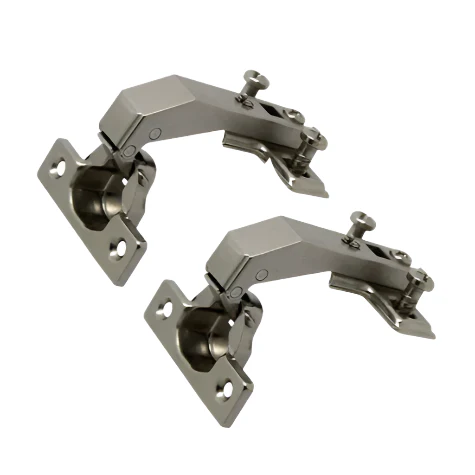

IntAfit Blind Corner Cabinet Mini Hinge 90° On 26mm Cup Diameter

Our IntAfit Cabinet Mini Hinge for Blind Corner Cabinets. This type of hinge allows the cabinet door to open 90 degrees enabling easy access to the stored contents within.

The Blind Corner cabinet hinge can be mounted on the inside of the blind gable allowing the door to be opened against the adjacent cabinet.

These hinges are commonly known as Kitchen hinges but are used in all types of furniture.

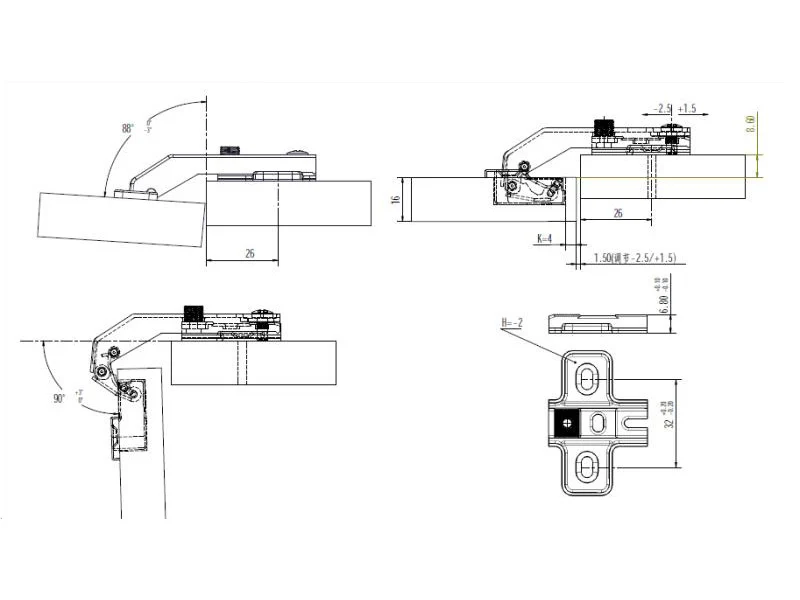

Specifications



• Overlay Adjustment: Gap 1.5mm with adjustment -2.5mm and +1.5mm
• Depth Adjustment: +/- 1mm
• Opening Angle: 90 degree's
• Door Thickness: 12 - 18mm
• Side Thickness: 16mm
• Cup Diameter: 26mm
• Hole Centres: 32mm
• Cup Hole Centres: 38mm
• Hinge Type: Screw-On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way
• Pack Contents: 2 Hinges, 2 Plates

Tools & fittings for the job

26mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
