IntAfit 30° Two Way 105° Clip On Soft Close Hinge - Nickel Plated

Our IntAfit 30° Angled Soft Close Cabinet hinge, are normally used on small cabinets or diagonal opening doors as they allow access, no matter how close the other cabinets are.

The Soft Close feature of the hinge prevents the cabinet door from slamming when closing. Used by most kitchen manufacturers, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.

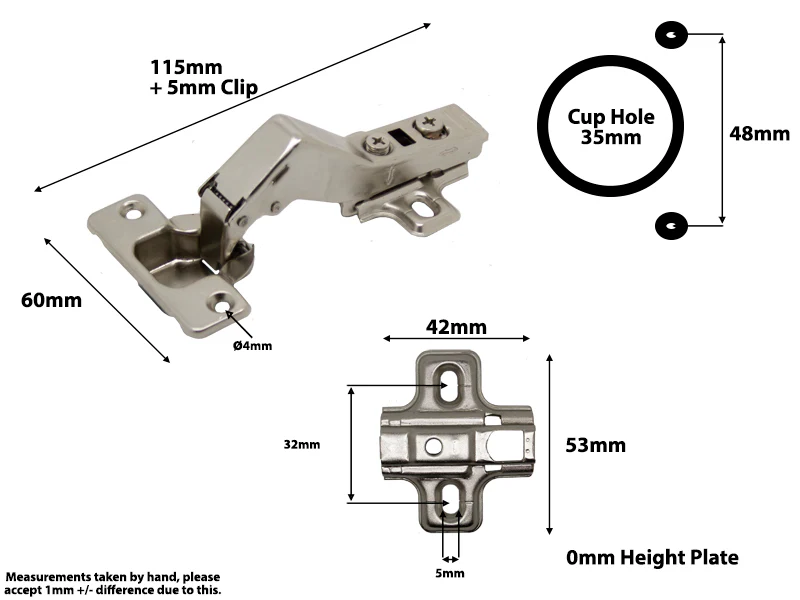

Specifications



• Overlay Adjustment: +/- 3mm
• Depth Adjustment: +/- 2mm
• 2 x Option Opening Angle: Can be opened to either 95 or 105 degrees
• Door Thickness: 14 - 22mm
• Side Thickness: N/A
• Cup Diameter: 35mm
• Hole Centres: 48mm
• Hinge Type: Clip-On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: Yes
• Adjustment: 3 way
• Plate: 0mm Cam Adjustable
• Pack Contents: 2 Hinges, 2 Plates





Tools & Fittings For The Job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
