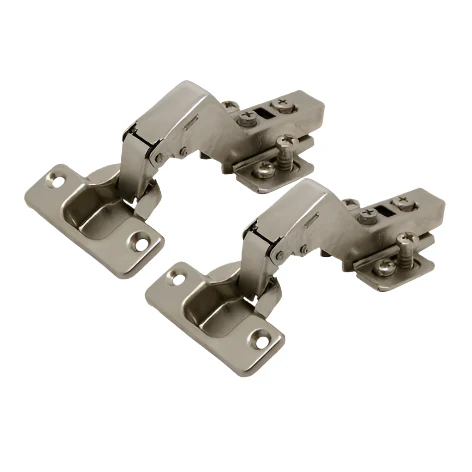

Series 63 30° Angle 110° Clip On Hinge On 35mm Cup Diameter

Our Series 63 30° Angle 110° Clip On Hinge has an opening angle of up to 110 degrees, giving you full access to the cupboard. Angled hinges are used by most kitchen manufacturers as they are designed for awkward spaces. However, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

 Please click here to view our Help Guides & Advice page.





Specifications



• Angle: 30 Degrees
• Overlay Adjustment: +/- 3mm
• Depth Adjustment: +/- 2mm
• Opening Angle: 110 degrees
• Door Thickness: 14 - 22mm
• Cup Diameter: 35mm
• Cup Drilling Depth: 11.5mm
• Hinge Type: Clip On
• Material: Steel
• Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way
• Plate: 2mm Plate
• Pack Contents: 2 Hinges & 2 Mounting Plates





Tools & Fittings For The Job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
