Sugatsune Medium Duty Spring Loaded Box Lid Stay - Back Mounted
Our Sugatsune Medium Duty Spring Loaded Box Lid Stay has a lift assist feature designed to make heavy lids easier to open, ideal for ottoman seats or storage boxes. This non handed stay can be used singularly or paired to increase the weight bearing capacity if required. Ā Please click here for our Torque Calculator Page.

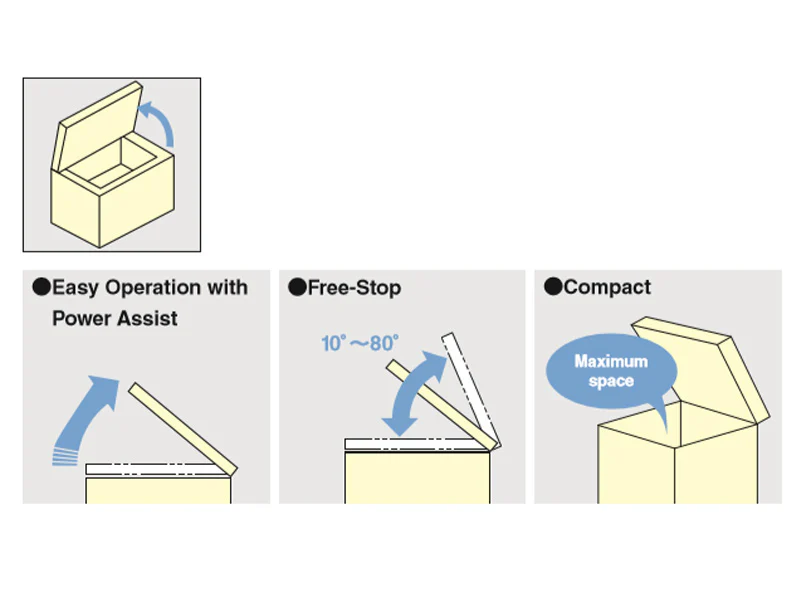

The free stop function holds position at any angle from 10 - 80 degrees.
Please note that this stay needs to be used with conventionalĀ butt hingesĀ and will not function with concealed hinges.
Ā

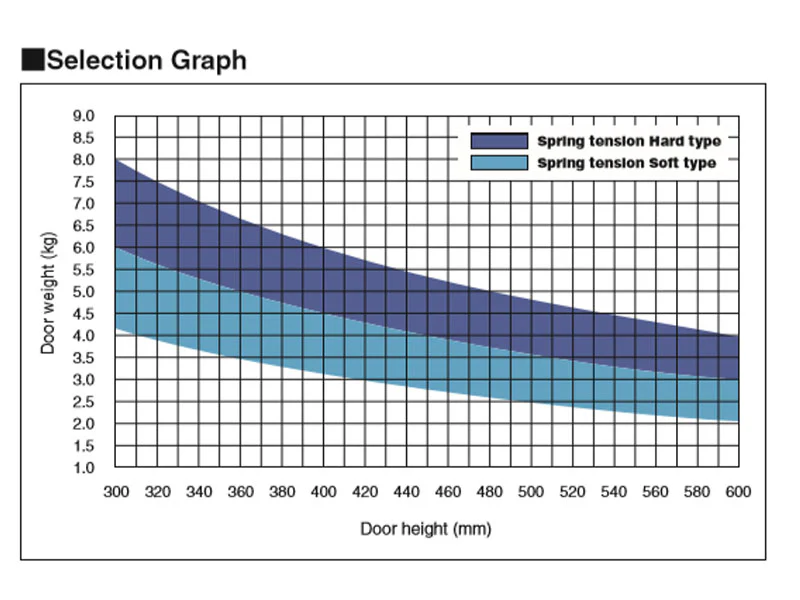

We recommend using theĀ StayĀ CalculatorĀ to establish the correct stay for the size of door.
Ā
The products Specification sheet can be found at the bottom of this page, please read for installation guidance. Please clickĀ here to view our Help Guides & Advice page
Ā
Ā
Specifications
Ā
- Soft Close: Yes
- Strength: Medium duty (90- 120 kgf.cm/pc)
- Held in: Free Stop between 10 and 80 degrees
- Opening: 80Ā°
- Sold As: Non Handed -Ā Back Mounted
- Material: Steel
- Finish: Stainless Steel / Polyacetal
- Supplier Code: S-AT02S
Ā
Ā
Recommended Screws
Stainless Steel Pozi Countersunk Screw 4 x 16mm (8 x 5/8")
Ā
