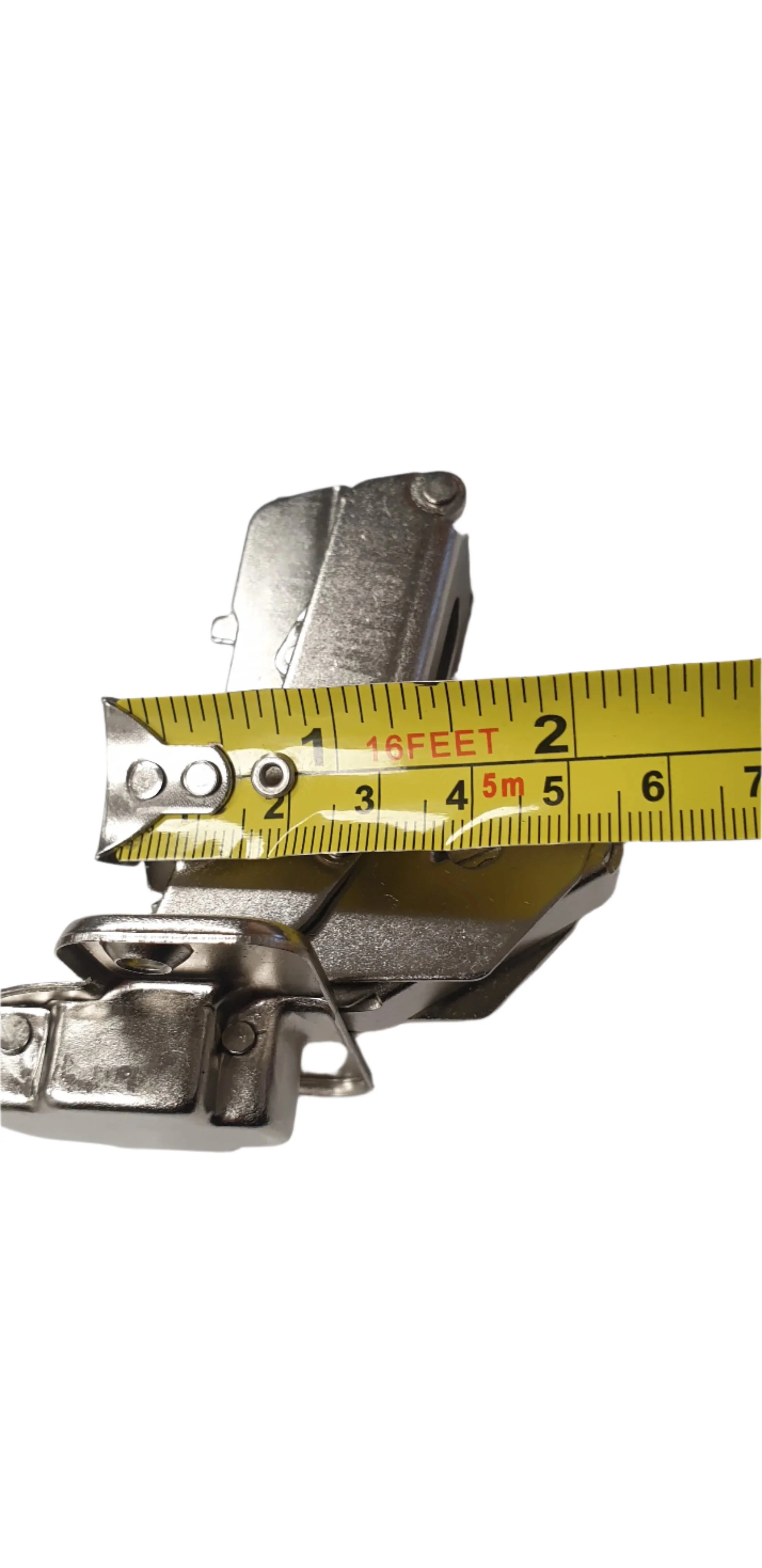

IntAfit Zero Protrusion Soft Close Cabinet Hinge Full Overlay 155°

Our IntAfit Soft Close Cabinet Hinge for Full Overlay applications has a built-in damper which prevents the door from slamming shut. This hinge is zero protrusion which is ideal for cabinets near pull out drawers. Pack contains two hinges and two plates.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications

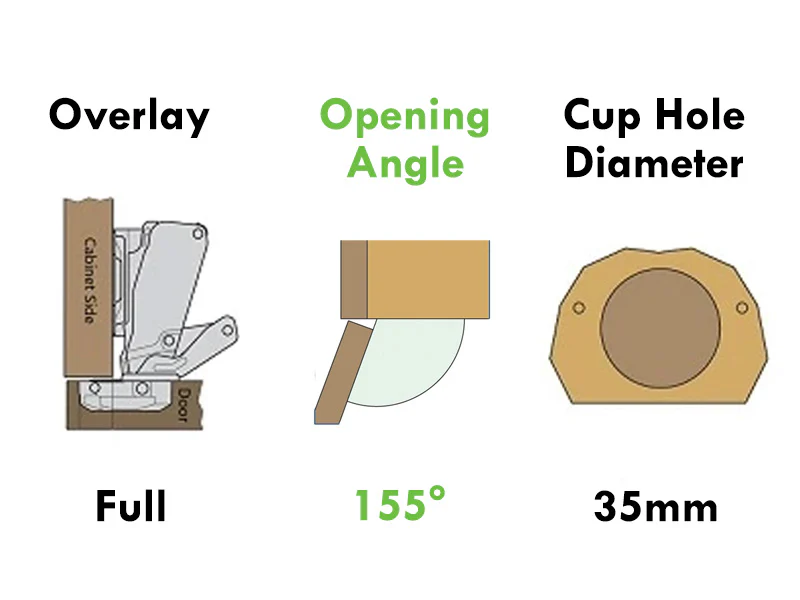

• Overlay Adjustment: +/- 3mm
• Depth Adjustment: +/- 2mm
• Opening Angle: 155 degree's
• Door Thickness: 14 - 22mm
• Side Thickness: 15-18mm
• Cup Diameter: 35mm
• Hole Centres: 48mm
• Hinge Type: Clip-On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: Yes
• Adjustment: 3 way
• Plate: 0mm Cam Adjustable
• Pack Contents: 2 Hinges & 2 Plates





Tools & Fittings For The Job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
