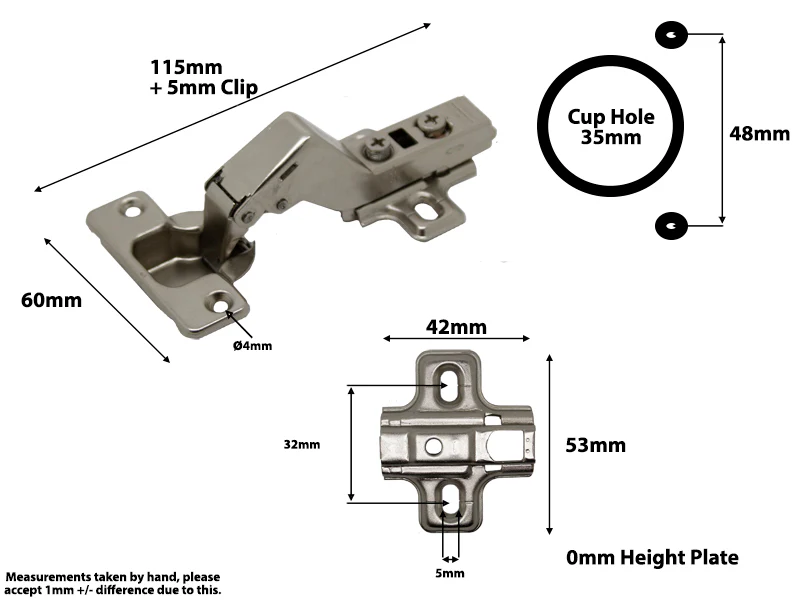

IntAfit 45° Angle Soft Close Cabinet Hinge On 35mm Cup Diameter

Our IntAfit 45° Angle Soft Close Cabinet Hinges are designed to be installed in Corner Cabinets, surrounded by other cabinet doors. The built-in damper prevents the door from slamming shut. These adaptable hinges can be opened to two different angles: 95 and 105 degrees.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Overlay Adjustment: +/- 3mm
• Depth Adjustment: +/- 2mm
• 2 x Option Opening Angle: Can be opened to either 95 or 105 degrees
• Door Thickness: 14 - 22mm
• Side Thickness: N/A
• Cup Diameter: 35mm
• Hole Centres: 48mm
• Hinge Type: Clip-On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: Yes
• Adjustment: 3 way
• Plate: 0mm Cam Adjustable
• Pack Contents: 2 Hinges, 2 Plates





Tools & Fittings For The Job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
