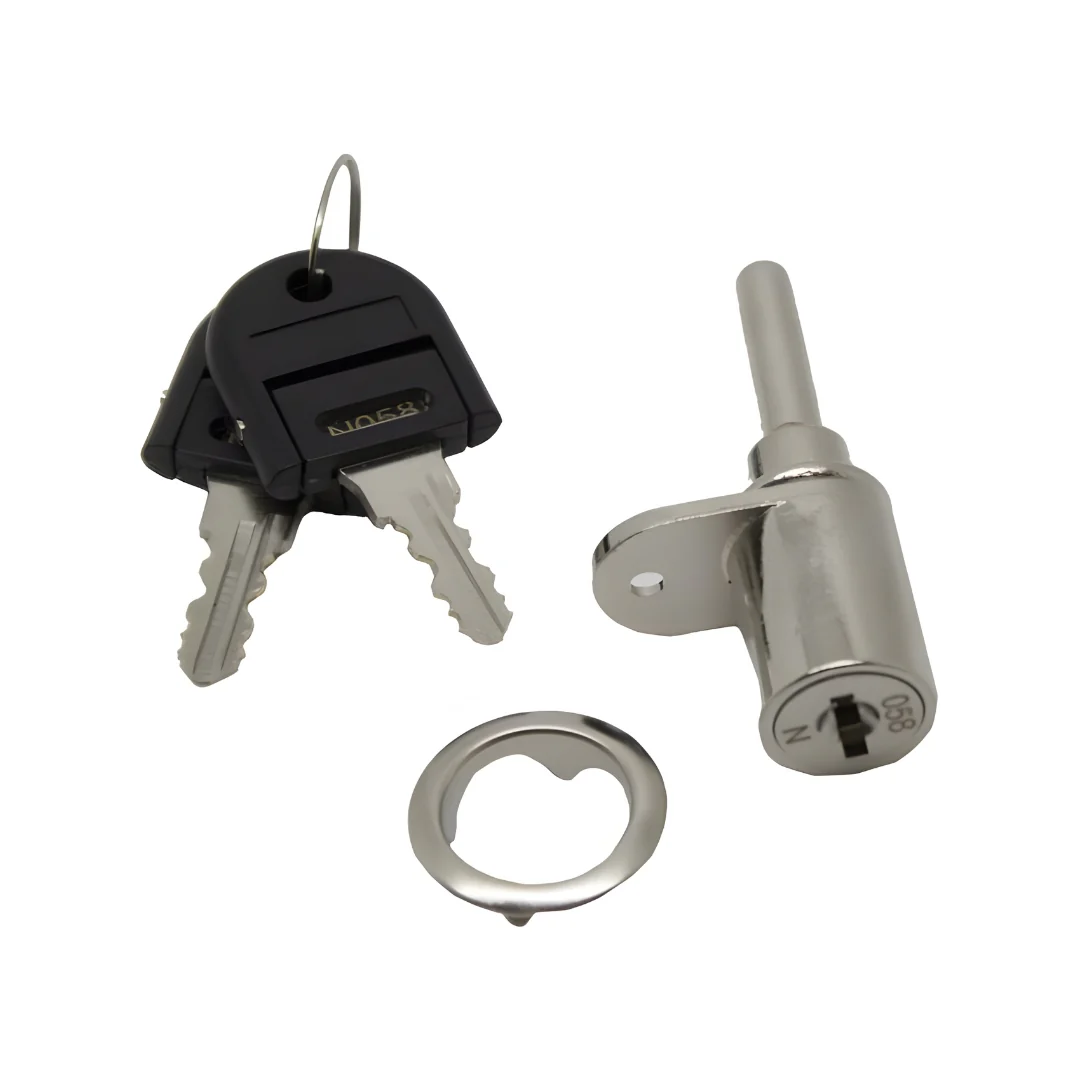

D16 Pedestal Lock Key 001 - 100 R/H Barrel 16.5 x 20mm

Our D16 pedestal lock with single wing is ideal for locking multiple drawers when used together with a locking bar.







Specifications



• Type: Keyed to differ (if ordering more than one lock you will receive all locks with different key numbers)
• Key Range:  001 - 100 (600 key combinations)
• Mastered Key Range: Yes
• Core Removable System: Yes
• Barrel Length: 20mm
• Lift: 12mm
• Cut Out: Requires 16.5mm diameter hole
• Fittings Included: Lock Housing, Core with 2x Keys & Rosette





Master Key

Eurofit D16 Master Key
