Bottom Mounting Bracket Set For DS76046
Mounting Bracket Set Suitable For Bottom Mounting the DS76046 Heavy Duty Drawer Slide.
Combination of brackets designed to be used in unison when additional fixing points are required.

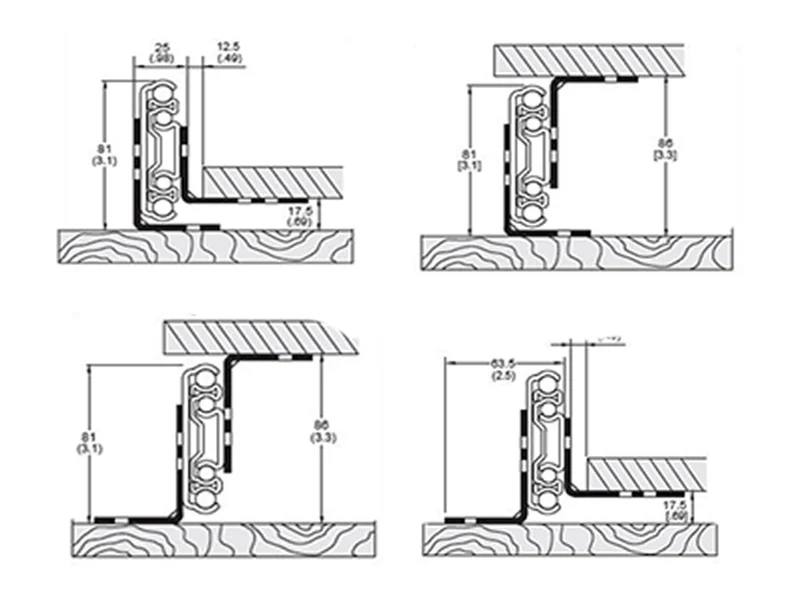

1 bracket is bottom fixed to the cabinet and the outside edge of the drawer runner, while the other is attached to the bottom of the drawer and the inside edge of the drawer runner.

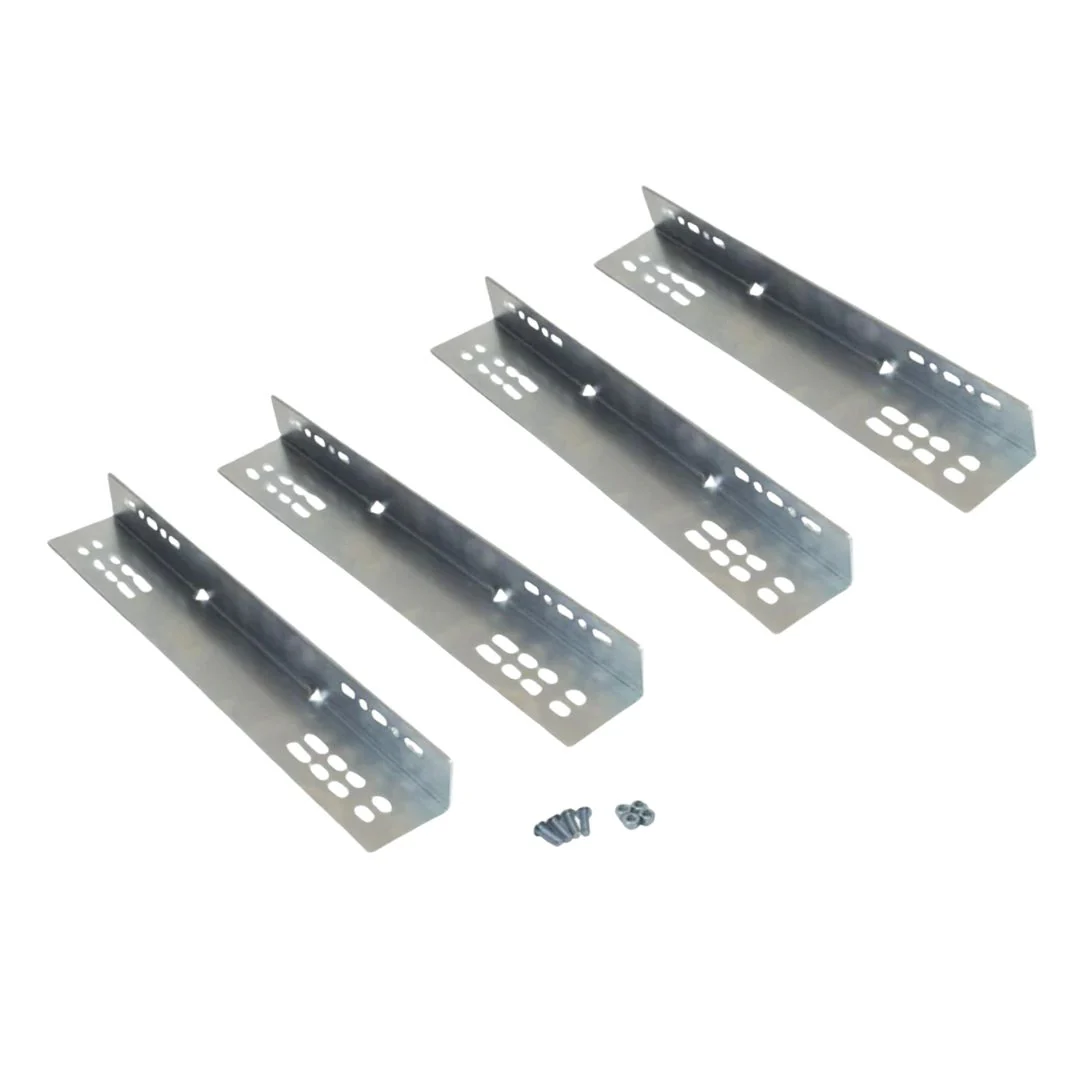

Set includes
- 4 - L-Shaped Mounting Brackets 305mm
- 4 - L-Shaped Mounting Brackets 559mm
- 16 - M6 x 16mm Button Head Socket Screw
- 16 - M6 Nylon Insert Nut
Original: $66.59
-65%$66.59
$23.31More Images
