Bottom Mounting Bracket Set For DS76040
Mounting Bracket Set Suitable For Bottom Mounting the DS76040 Heavy Duty Drawer Slide.
Combination of brackets designed to be used in unison when additional fixing points are required.

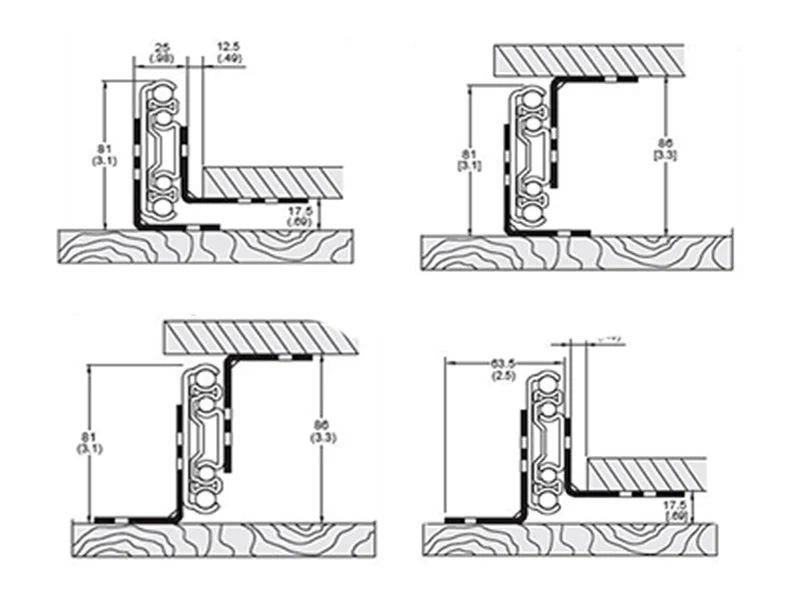

1 bracket is bottom fixed to the cabinet and the outside edge of the drawer runner, while the other is attached to the bottom of the drawer and the inside edge of the drawer runner.

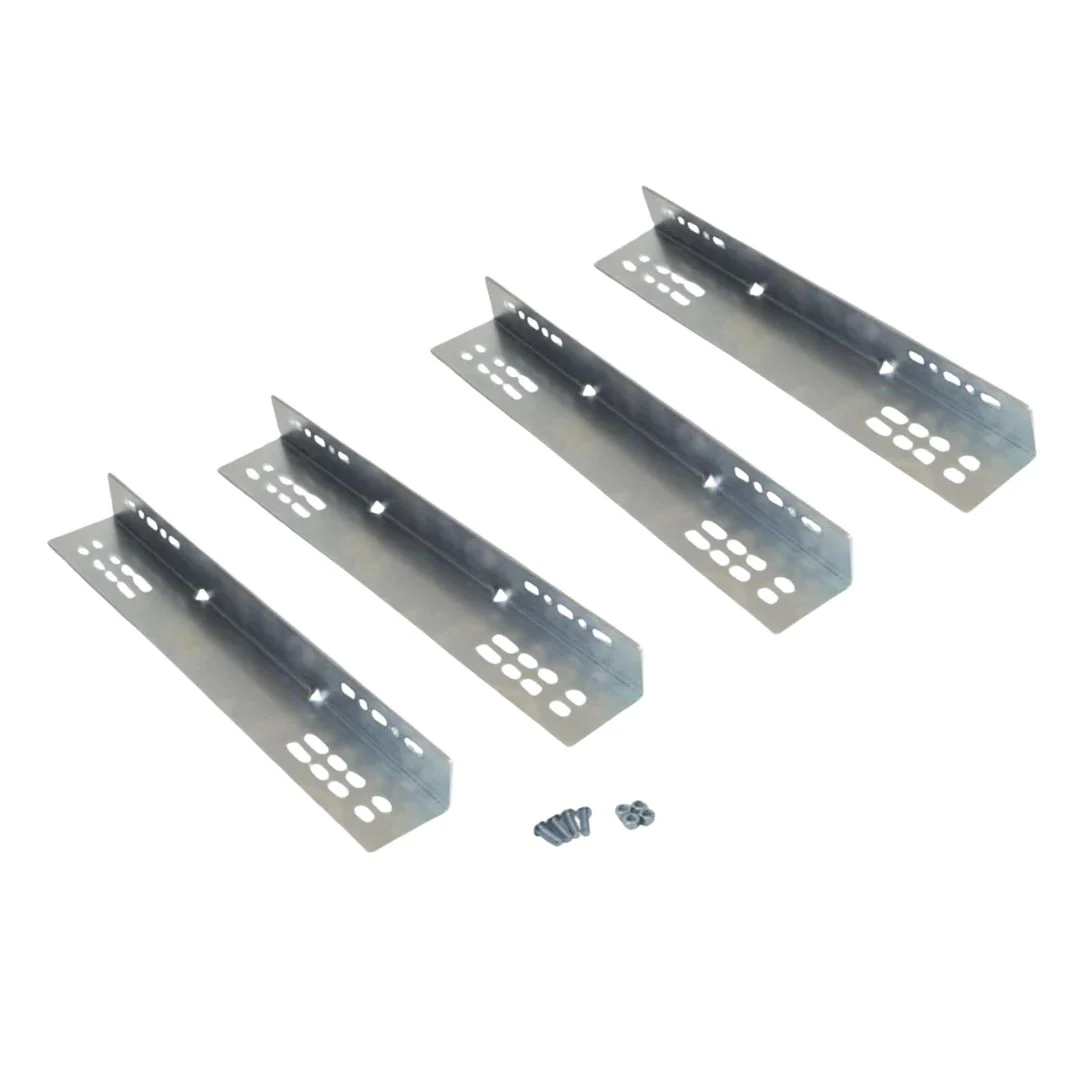

Set includes
- 4 - L-Shaped Mounting Brackets 305mm
- 4 - L-Shaped Mounting Brackets 559mm
- 16 - M6 x 16mm Button Head Socket Screw
- 16 - M6 Nylon Insert Nut
Original: $66.59
-65%$66.59
$23.31More Images
Bottom Mounting Bracket Set For DS76040
Mounting Bracket Set Suitable For Bottom Mounting the DS76040 Heavy Duty Drawer Slide.
Combination of brackets designed to be used in unison when additional fixing points are required.
1 bracket is bottom fixed to the cabinet and the outside edge of the drawer runner, while the other is attached to the bottom of the drawer and the inside edge of the drawer runner.
Set includes
- 4 - L-Shaped Mounting Brackets 305mm
- 4 - L-Shaped Mounting Brackets 559mm
- 16 - M6 x 16mm Button Head Socket Screw
- 16 - M6 Nylon Insert Nut
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Mounting Bracket Set Suitable For Bottom Mounting the DS76040 Heavy Duty Drawer Slide.
Combination of brackets designed to be used in unison when additional fixing points are required.
1 bracket is bottom fixed to the cabinet and the outside edge of the drawer runner, while the other is attached to the bottom of the drawer and the inside edge of the drawer runner.
Set includes
- 4 - L-Shaped Mounting Brackets 305mm
- 4 - L-Shaped Mounting Brackets 559mm
- 16 - M6 x 16mm Button Head Socket Screw
- 16 - M6 Nylon Insert Nut
