Push To Open & Soft Close Drawer Runner - 450mm - 30kg Load Rating - Full Extension

Our Ball Bearing Push to Open Soft Close Drawer Runner allows for handle free access and a seamless finish to any storage unit.

In order to use the push to open feature of these runners, you will need to push level to where the runners are installed. The soft close function prevents the drawer from slamming shut.

When installing these runners, the gap between the drawer side and carcass has to be precisely 12.7mm as the tolerance is very small.



Please allow 3/4mm between the carcass wall and drawer front when installing. After you have pushed the drawer, you may feel a slight resistance when opening, this is the Soft Close mechanism activating.

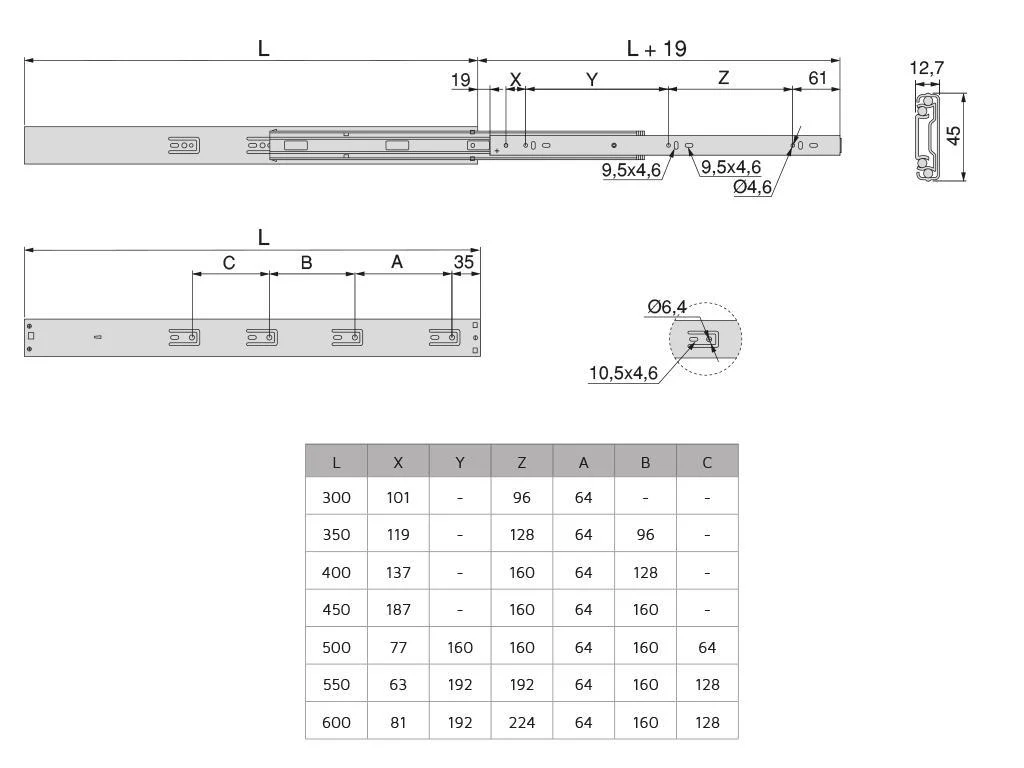

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.

*The mechanism colour is subject to change.





Specifications



• Type: Push to Open Soft Close
• Finish: Zinc Plated
• Closed Length: 450mm
• Open Length: 900mm
• Extension: 100%
• Profile Height: 45mm
• Profile Width: 12.7mm
• Load Rating: 30kg
• Range Sizes: 300 - 600mm
• Fixing Method: Screw or Rivet
• Installation: Side Mounted (Base mounting these runners is not recommended)
• Push Open Travel Distance: 25mm



Suitable For

• Kitchens
• Bedrooms
• Living Rooms
• Understairs Storage
• Office Furniture
• Bedroom Furniture
• Commercial Unit

*Please note: this product is not to be used in vehicles





Recommended Screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
