Ball Bearing Drawer Runner - 45kg Load Rating - 500mm

This Ball Bearing 45kg Drawer runner has a 45mm profile height and 500mm closed length with a further 500mm extension (1000mm open length). This drawer runner has a  quick release lever allowing easy installation.

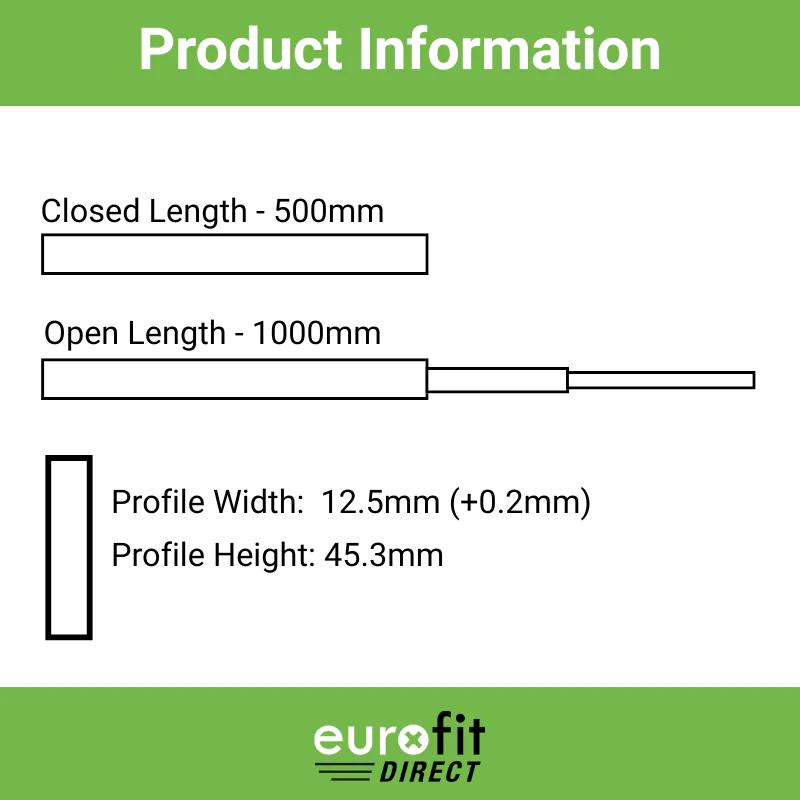

Specifications



• Finish: Zinc Plated
• Closed Length: 500mm
• Open Length: 1000mm
• Profile Height: 45mm
• Profile Width: 12.5mm
• Load Rating: 45kg (based on 450mm length)
• Quick Release: Yes
• Range Sizes: 250 - 750mm
• Fixing Method: Screw or Rivet
• Installation: Side Mounted (Base mounting these runners is not recommended)

*Please note that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.



Applications

• Office Furniture
• Bedroom Furniture
• Tool box storage units
• Vehicle Conversions
• Caravans
• Motorhomes
• Computer server storage
• Shop Fitting





Recommended Additionals

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

Push to Open Touch Locking Latch (rubber stopper on runner has to be removed for these to work)
