Ball Bearing Drawer Runner - 45kg Load Rating - 750mm

Our ball bearing 45kg drawer slide, with a 45mm profile height and 750mm closed length with a further 750mm extension (1500mm open length). Classified as a medium-duty drawer slide in our range with quick release lever allowing easy installation. This drawer runner is designed to be fitted between a unit side and drawer side.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.

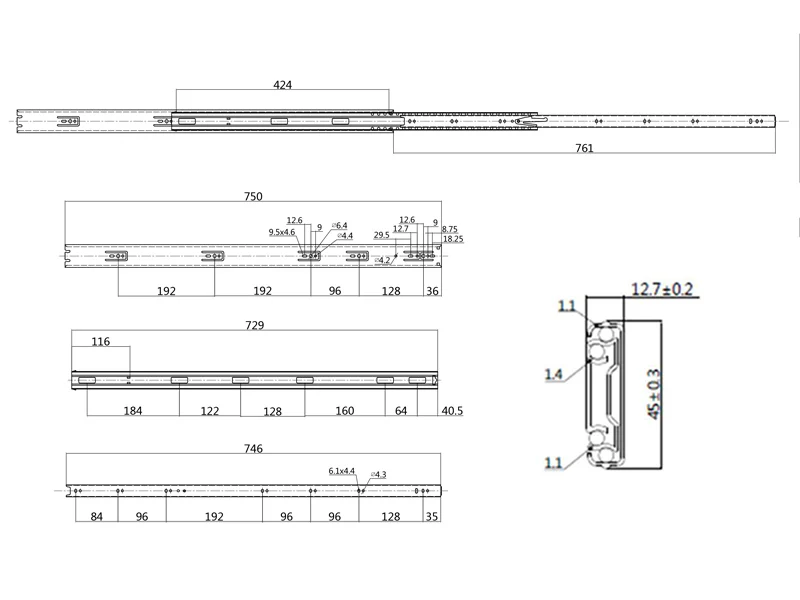

Specifications



• Finish: Zinc Plated
• Closed Length: 750mm
• Open Length: 1500mm
• Profile Height: 45mm
• Profile Width: 12.5mm (+0.2mm)
• Load Rating: 45kg (based on 450mm length)
• Quick Release: Yes
• Range Sizes: 250 - 750mm
• Fixing Method: Screw or Rivet
• Installation: Side Mounted (Base mounting these runners is not recommended)



*Please note that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.



Applications

• Office Furniture
• Bedroom Furniture
• Kitchen Drawers
• Vehicle Conversions
• Caravans
• Motorhomes
• Shop Fitting
