Ball Bearing Drawer Runner - 45kg Load Rating - 300mm

Our ball bearing 45kg drawer slide, with a 45mm profile height and 300mm closed length with a further 300mm extension (600mm open length). Classified as a medium duty drawer slide in our range with quick release lever allowing easy installation. This drawer runner is designed to be fitted between a unit side and drawer side.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.

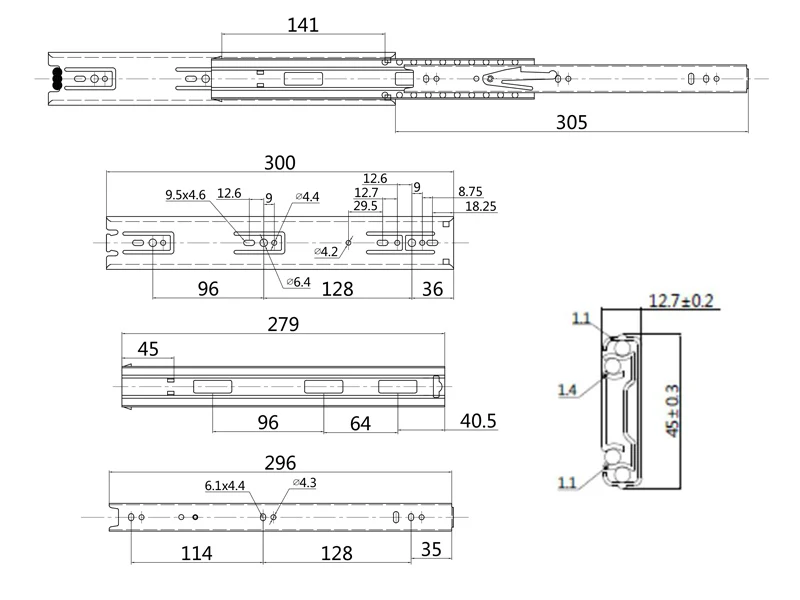

Specifications



• Finish: Bright Zinc Plated
• Extension: 3 Part Slide (100%)
• Installation: Side Mounted
• Closed Length: 300mm
• Open Length: 600mm
• Profile Height: 46mm
• Profile Width: 12.7mm (Based on 450mm)
• Drawer Width: (Internatil Cabinet Width) 26mm
• Load Rating: 45kg (Based on 450mm)
• Quick Release: Yes
• Range Sizes: 250 - 750mm
• Fixing Method: Screw or Rivet




*Please note that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.



Applications

• Office Furniture
• Bedroom Furniture
• Kitchen Drawers
• Vehicle conversions
• Caravans
• Motorhomes
• Shop fitting
