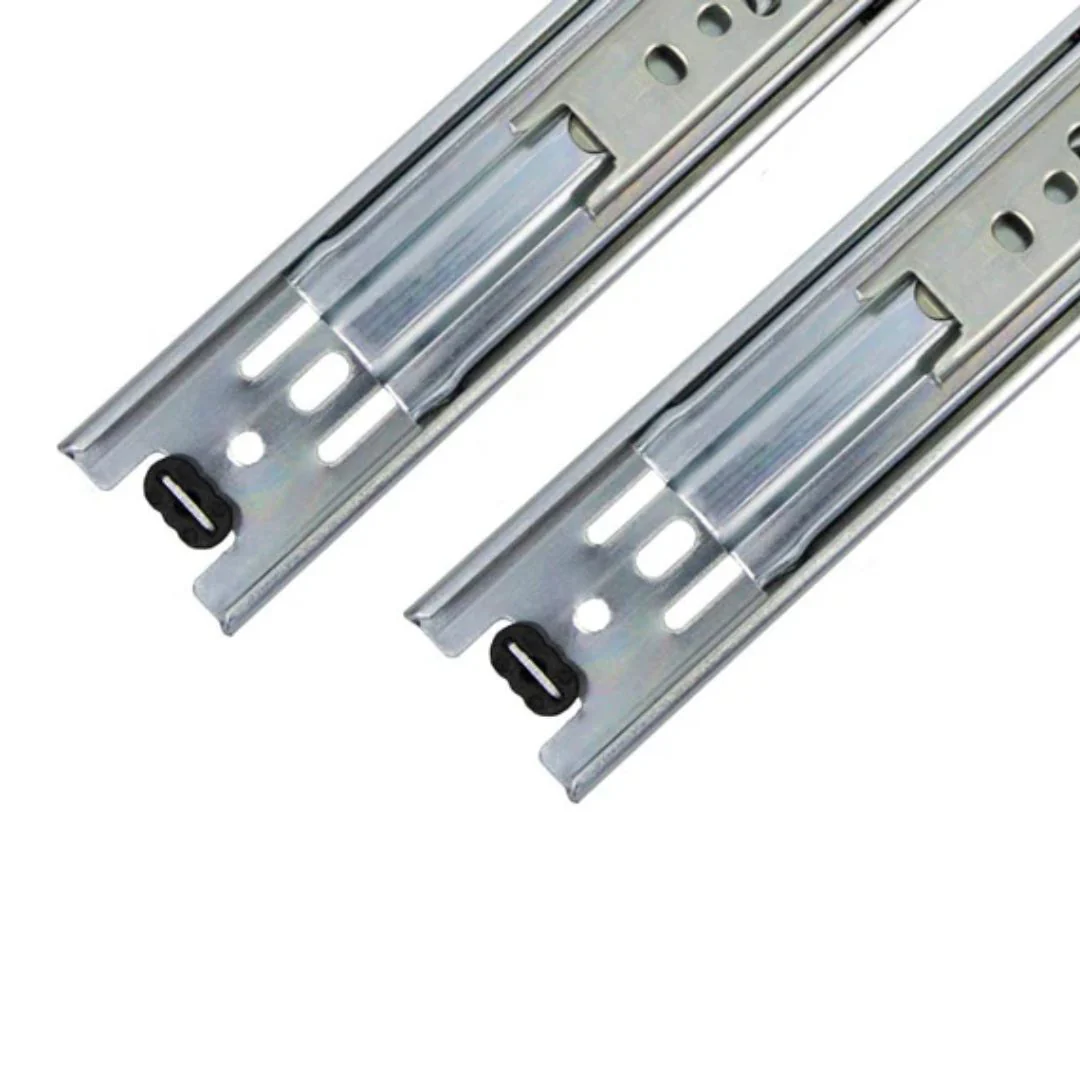

Ball Bearing Drawer Runner - 450mm - 35kg Load Rating - Full Extension
Our IntAfit ball-bearing drawer slides with 35kg load rating, 35.6mm profile height and 450mm closed length with a further 450mm extension (900mm open length). Classified as a medium duty drawer slide in our range with a quick release lever for installation.
Specifications
- Finish: Bright Zinc Plated
- Extension: 3 Part Slide (100%)
- Installation: Side Mounted (Product NOT to be Base Mounted)
- Closed Length: 450mm
- Open Length: 900mm
- Profile Height: 35mm
- Profile Width: 12.6mm (Based on 450mm)
- Drawer Width: (Internatil Cabinet Width) 26mm
- Load Rating: 35kg (Based on 450mm)
- Range Sizes: 250 - 750mm
-
Fixing Method: Screw or Rivet
Applications
- Office Furniture
- Bedroom Furniture
- Tool box storage units
- Vehicle Conversions
- Caravans
- Motorhomes
- Computer Server Storage
- Shop Fitting
Recommended Screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
Alternative Products
Ball Bearing 35kg Drawer Slide 35 x 450mm Ext 75%
Ball Bearing 35kg Drawer Slide 35 x 500mm Ext 75%
Ball Bearing 35kg Drawer Slide 35 x 560mm Ext 75%
