Adjustable Bureau Hinge For Drop Down Doors 16mm - 19mm Thick - 90° Opening

Our Sugatsune Drop Down Door hinge is ideal for use on Bureau, Drinks and TV Cabinets for example. The hinge can be used for any application where the door opens from a Vertical to Horizontal position.

*Please note that for doors over 900mm wide up to 1200mm, 3x hinges will be required. These hinges are used in conjunction with our Bureau and TV Cabinet stays.

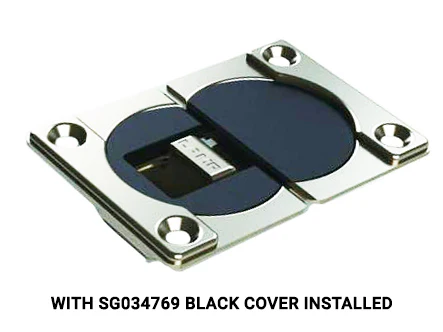

Alternate Image shown is with the black cover installed. It can be purchased separately here.







Specifications



• Opening Angle: 90°
• Sold as: Each
• Adjustment: 3-way (Overlay, Horizontal, Door Gap)
• Horizontal Adjustment: +/- 1mm
• Door Gap: 1-3mm
• Overlay Coverage: 14-16mm
• Suitable Door Thickness: 16-19mm
• Finish: Nickel
• Pack Contents: 1 Hinge (Covers sold separately)





Optional Additional Products

• Covers For Adjustable Bureau Hinge SG034200 Black
• Torq-Fix Pozi Pan Head Screw 3 x 12mm (4 x 1/2") Zinc



Our Bureau Hinge can be used in conjunction with our range of Bureau Stays

• Sugatsune Soft Close Bureau Stay R/Hand 70-105 Deg Opening
• Sugatsune Soft Close Bureau Stay L/Hand 70-105 Deg Opening
• Sugatsune Soft Open Short R/H Arm TV Cabinet Stay Nickel
• Sugatsune Soft Open Short L/H Arm TV Cabinet Stay Nickel



Alternative Bureau Hinge

• Bureau Hinge For Flaps 16 - 22mm Thick 90 Deg Opening Angle
